دیتاشیت LT3063MPDCB#TRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3063 Series |
|---|---|
| حجم فایل | 975.092 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت LT3063 Series |

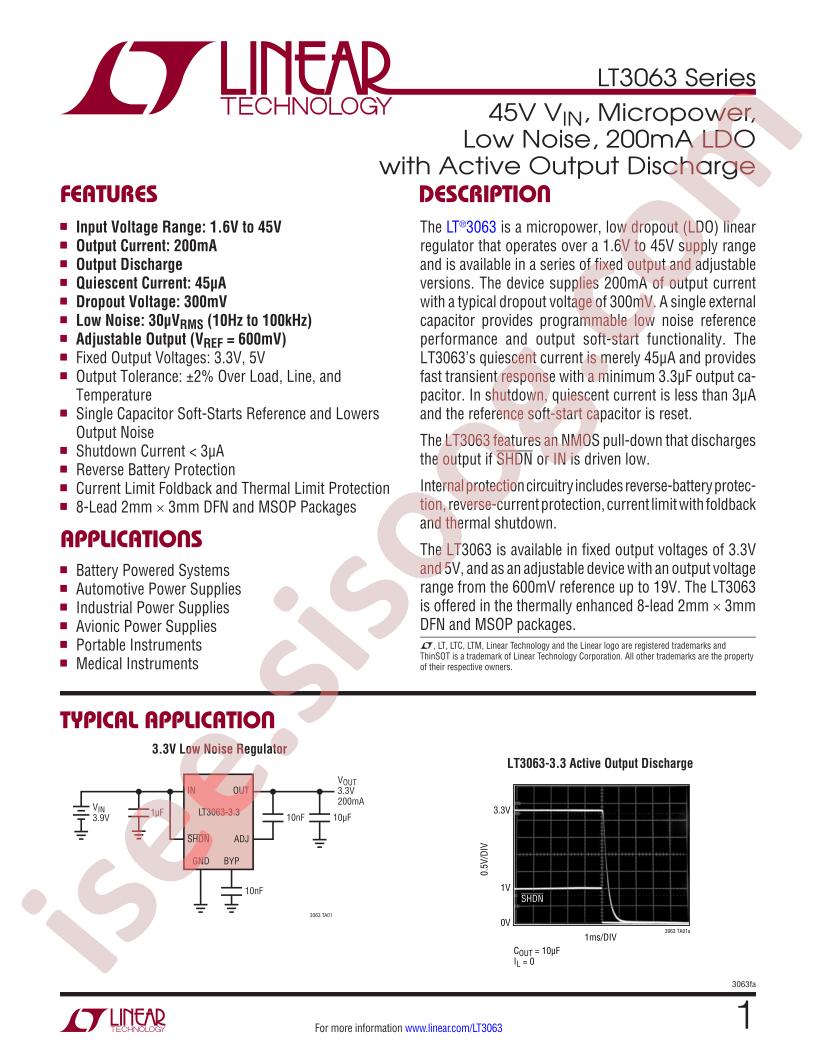

LT3063 Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT3063MPDCB#TRMPBF
- Output Type: Adjustable
- Output Current: 200mA
- Output Voltage: 0.6V~19V
- Dropout Voltage: 0.53V@(200mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 45V
- Operating Temperature: -55°C~+150°C
- Power Supply Rejection Ratio (PSRR): 85dB@(120Hz)
- Package: DFN-8-EP(2x3)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 45V
- Voltage - Output (Min/Fixed): 0.6V
- Voltage - Output (Max): 19V
- Voltage Dropout (Max): 0.53V @ 200mA
- Current - Output: 200mA
- PSRR: 85dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-DFN (2x3)
- Base Part Number: LT3063
- detail: Linear Voltage Regulator IC 1 Output 200mA 8-DFN (2x3)
