دیتاشیت LTC3862EFE-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3862-1 Datasheet |
|---|---|
| حجم فایل | 1630.474 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |

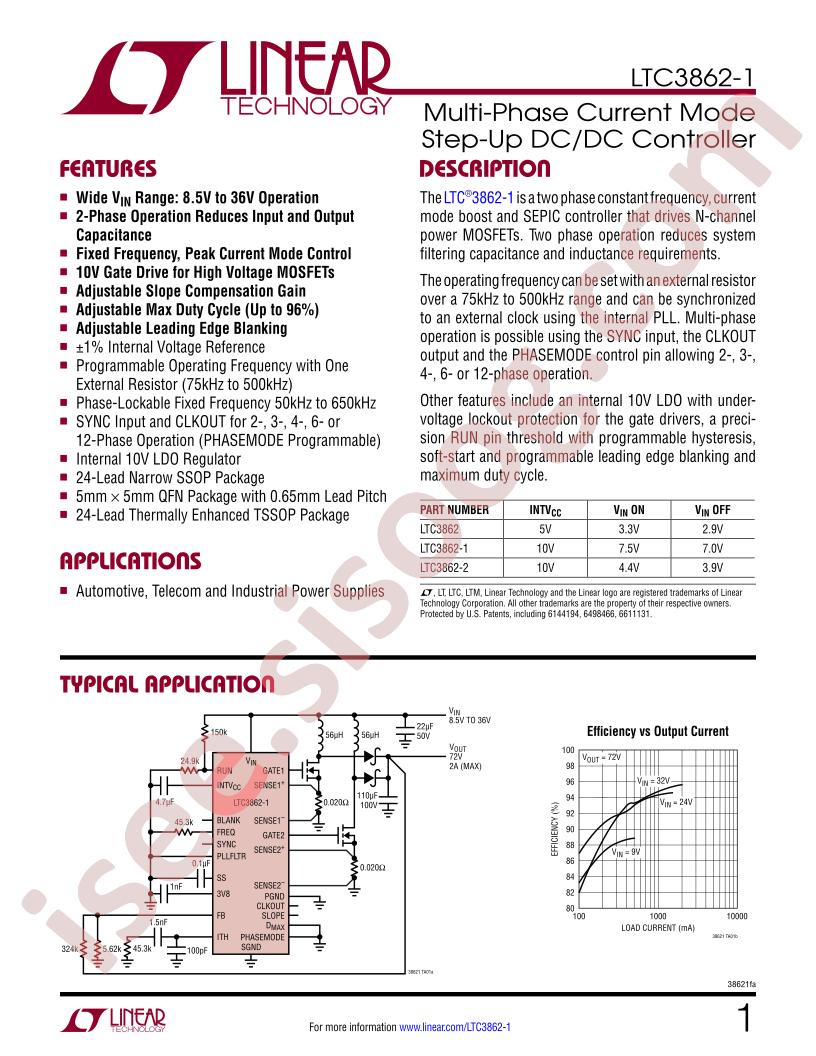

دانلود دیتاشیت LTC3862-1 Datasheet |
LTC3862-1 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;SEPIC
- Input Voltage: 8.5V~36V
- Duty Cycle (Max): 96%
- Number of Outputs: 2
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: TSSOP-24-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 8.5V ~ 36V
- Frequency - Switching: 75kHz ~ 500kHz
- Synchronous Rectifier: No
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Frequency Control, Phase Control, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 24-TSSOP-EP
- Base Part Number: LTC3862
- detail: Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 24-TSSOP-EP
