دیتاشیت LT3755JMSE-2#WPBF

مشخصات دیتاشیت

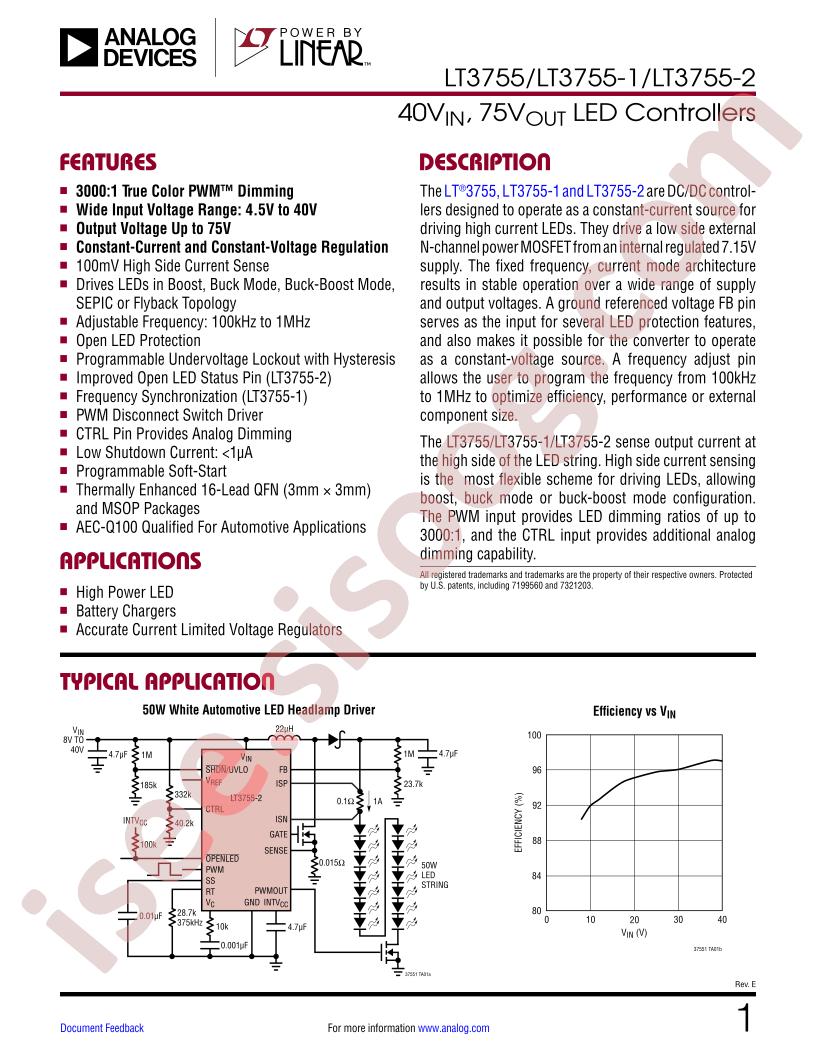

دانلود دیتاشیت LT3755(-1,-2)	LT3755(-1,-2) Datasheet

Manufacturer: Linear Technology/Analog Devices
Series: Automotive, AEC-Q100
Packaging: Tube
Part Status: Active
Type: DC DC Controller
Topology: Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s): No
Number of Outputs: 1
Voltage - Supply (Min): 4.5V
Voltage - Supply (Max): 40V
Voltage - Output: 2.9V ~ 75V
Current - Output / Channel: -
Frequency: 100kHz ~ 1MHz
Dimming: Analog, PWM
Applications: General Purpose
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 16-MSOP-EP
detail: LED Driver IC 1 Output DC DC Controller Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 16-MSOP-EP
