دیتاشیت LT8300IS5#WTRMPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT8300 |
|---|---|
| حجم فایل | 1417.525 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LT8300 |
LT8300 Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: Automotive, AEC-Q100
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Function: Step-Up/Step-Down
- Output Configuration: Positive or Negative, Isolation Capable
- Topology: Flyback
- Output Type: -
- Number of Outputs: 1
- Voltage - Input (Min): 6V
- Voltage - Input (Max): 100V
- Voltage - Output (Min/Fixed): -
- Voltage - Output (Max): 150V (Switch)
- Current - Output: 260mA (Switch)
- Frequency - Switching: 7.5kHz ~ 750kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount

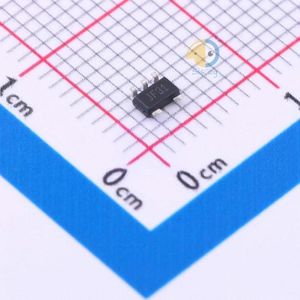

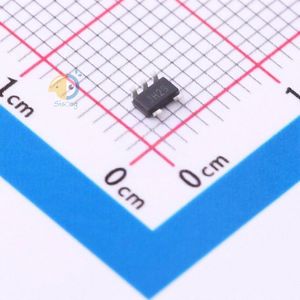

- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: TSOT-23-5
- detail: Flyback Switching Regulator IC Positive or Negative, Isolation Capable 1 Output 260mA (Switch) SOT-23-5 Thin, TSOT-23-5
