دیتاشیت LT3695HMSE-3.3#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3695 |
|---|---|
| حجم فایل | 508.226 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت LT3695 |

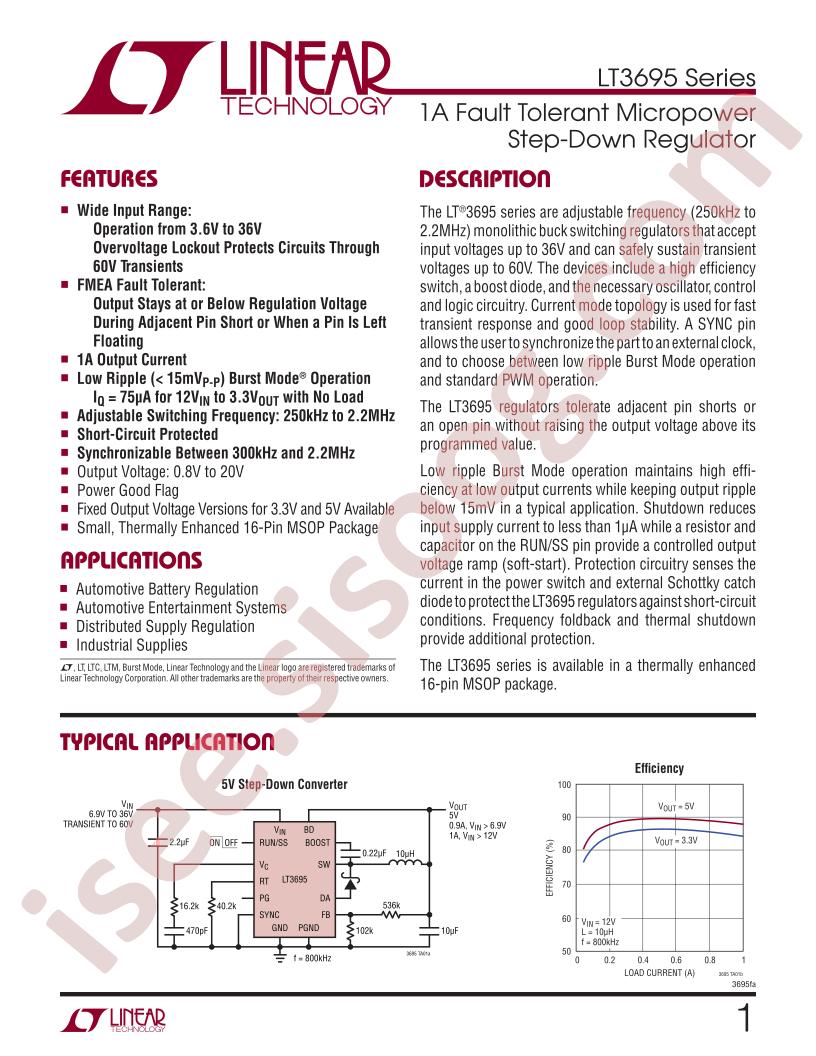

LT3695 Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 3.6V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Current - Output: 1A
- Frequency - Switching: 250kHz ~ 2.2MHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 16-MSOP-EP
- Base Part Number: LT3695
- detail: Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
