دیتاشیت LTC7545AKSW#TRPBF

LTC7545A

مشخصات دیتاشیت

نام دیتاشیت LTC7545A
حجم فایل 158.596 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LTC7545A

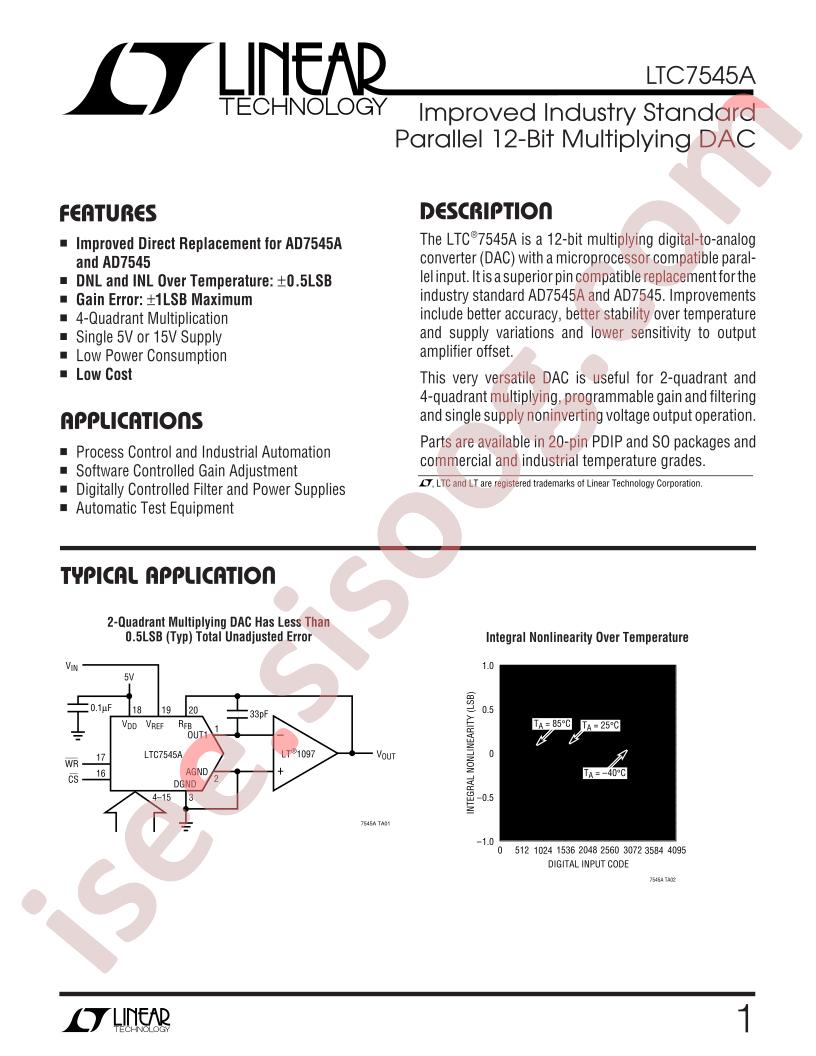

LTC7545A Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC7545AKSW#TRPBF
  • Package: SOP-20-7.8mm
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 1
  • Settling Time: 1µs
  • Output Type: Current - Unbuffered
  • Differential Output: No
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 5V, 14.25V ~ 15.75V
  • Voltage - Supply, Digital: 5V, 14.25V ~ 15.75V
  • INL/DNL (LSB): ±0.5 (Max), ±1 (Max)
  • Architecture: R-2R
  • Operating Temperature: 0°C ~ 70°C
  • Package / Case: 20-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 20-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: LTC7545
  • detail: 12 Bit Digital to Analog Converter 1 20-SOIC
