دیتاشیت LTC3111IMSE#TRPBF

مشخصات دیتاشیت

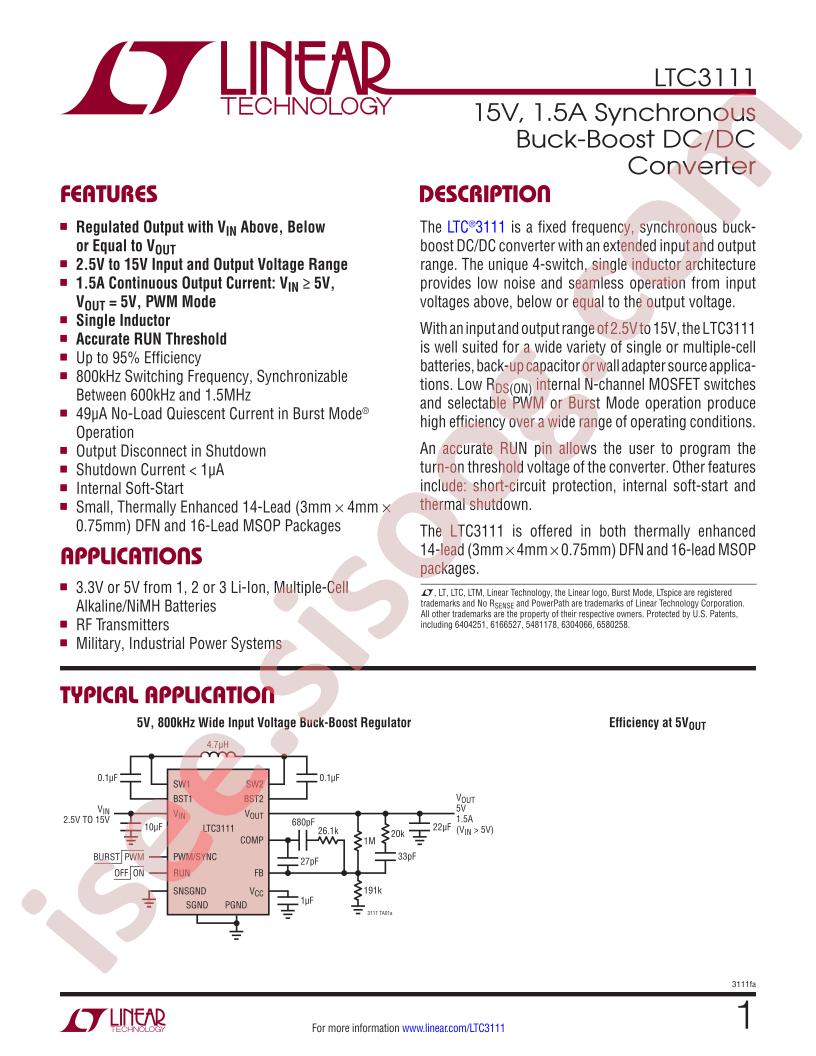

دانلود دیتاشیت LTC3111 Datasheet	LTC3111 Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Step-down-Boost
Datasheet: Analog Devices LTC3111IMSE#TRPBF
Output Type: Adjustable
Input Voltage: 2.5V~15V
Output Voltage: 2.5V~15V
Number of Outputs: 1
Switching Frequency: 800kHz
Output Current (Max): 1.5A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: Yes
Package: MSOP-16-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.5V
Voltage - Input (Max): 15V
Voltage - Output (Min/Fixed): 2.5V
Voltage - Output (Max): 15V
Current - Output: 1.5A
Frequency - Switching: 800kHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 16-MSOP-EP
Base Part Number: LTC3111
detail: Buck-Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 1.5A 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
