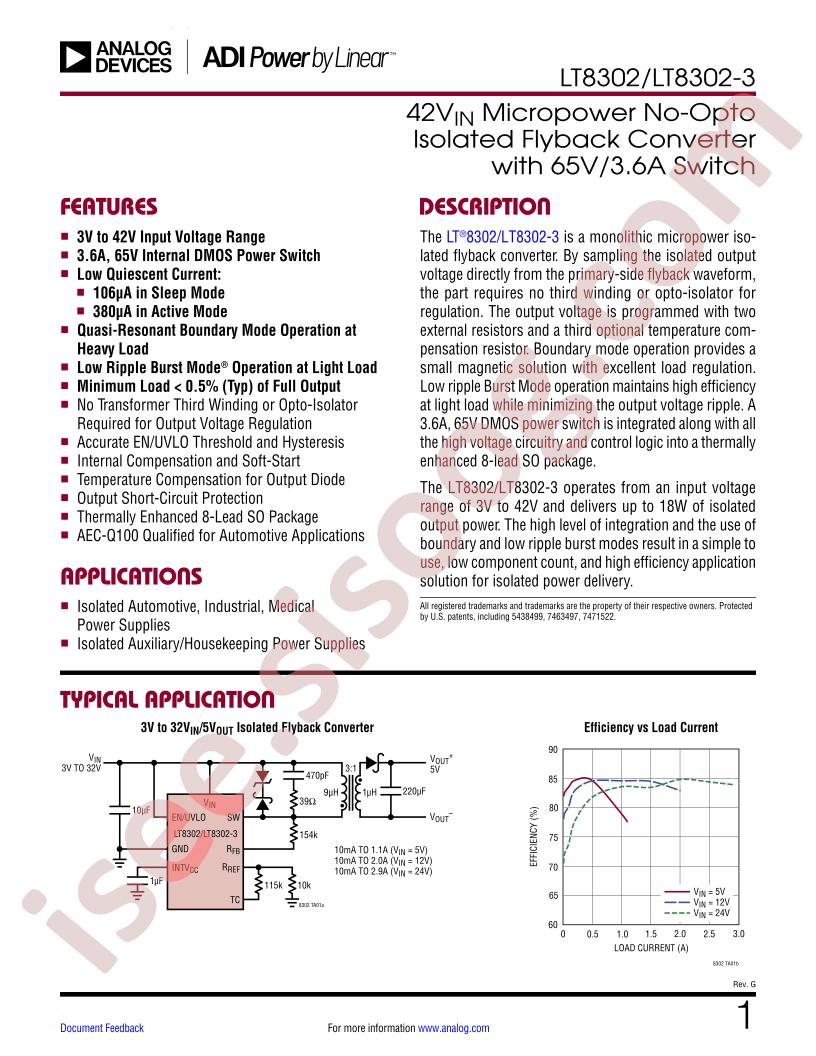

LT8302HS8E#PBF 数据手册
其他文档
LT8302, LT8302-3 26 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Buck-boost type
- Topology: Flyback
- Datasheet: Analog Devices LT8302HS8E#WPBF
- Output Type: -
- Input Voltage: 3V~42V
- Output Voltage: 65V
- Number of Outputs: 1
- Switching Frequency: 12kHz
- Output Current (Max): 3.6A
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: NO
- Package: SOP-8
- Manufacturer: Analog Devices
- Series: Automotive, AEC-Q100
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive or Negative, Isolation Capable
- Voltage - Input (Min): 3V
- Voltage - Input (Max): 42V
- Voltage - Output (Min/Fixed): -
- Voltage - Output (Max): 65V (Switch)
- Current - Output: 3.6A (Switch)
- Frequency - Switching: Down to 12kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC
- detail: Flyback Switching Regulator IC Positive or Negative, Isolation Capable 1 Output 3.6A (Switch) 8-SOIC (0.154", 3.90mm Width) Exposed Pad
