- دیتاشیت LTC3859AEUHF#PBF
LTC3859AEUHF#PBF دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LTC3859AEUHF#PBF |
|---|---|
| حجم فایل | 128.5 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت LTC3859AEUHF#PBF |
دانلود دیتاشیت |
|---|
سایر مستندات

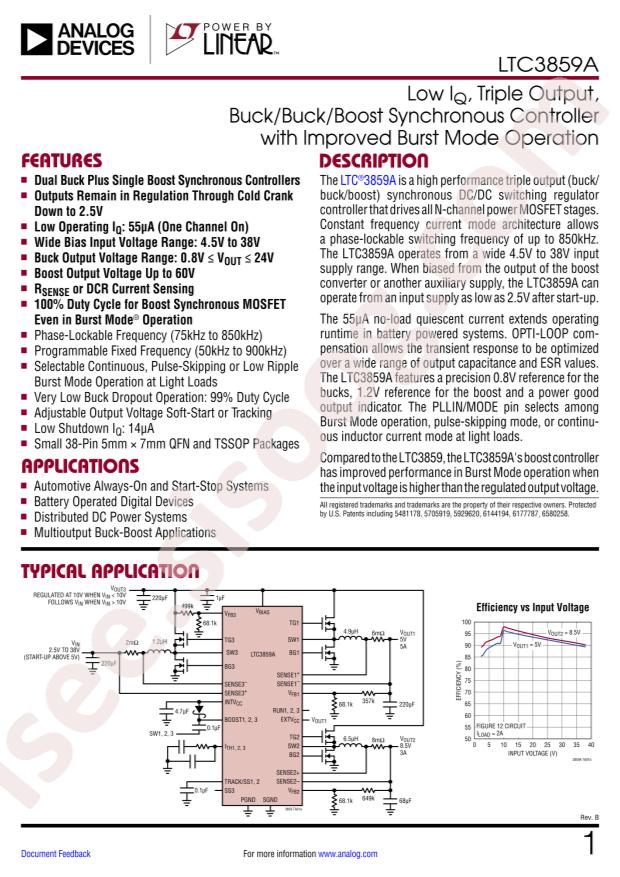

LTC3859A Datasheet 44 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Datasheet: Analog Devices LTC3859AEUHF#PBF
- Package: QFN-38-EP(5x7)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Down, Step-Up/Step-Down
- Output Configuration: Positive
- Topology: Buck, Buck-Boost, SEPIC
- Number of Outputs: 3
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 38V
- Frequency - Switching: 115kHz ~ 835kHz, 350kHz ~ 535kHz
- Duty Cycle (Max): 99%, 100%
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 38-WFQFN Exposed Pad
- Supplier Device Package: 38-QFN (5x7)
- Base Part Number: LTC3859
- detail: Buck, Buck-Boost, SEPIC Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 38-QFN (5x7)
