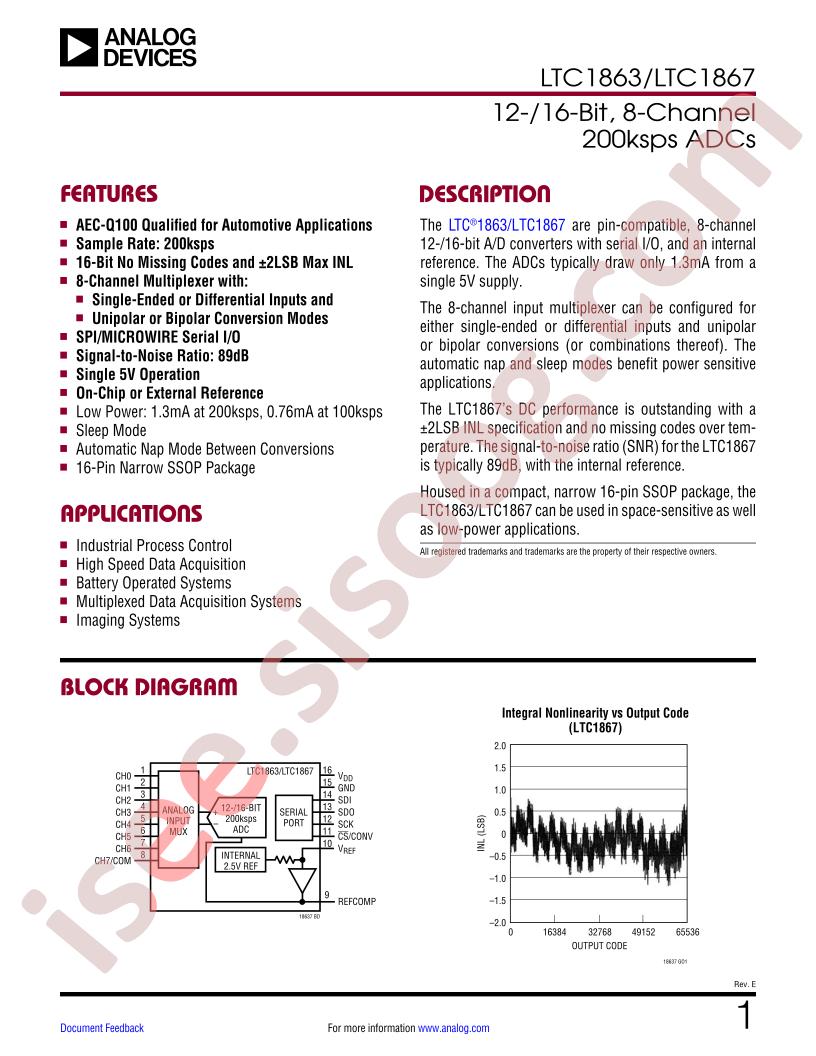

LTC1863, LTC1867 Datasheet Datasheet

LTC1863, LTC1867 Datasheet

Datasheet specifications

Datasheet's name LTC1863, LTC1867 Datasheet
File size 469.907 KB
File type pdf
Number of pages 18

Download Datasheet LTC1863, LTC1867 Datasheet

Download Datasheet

Other documentations

LTC1867CGN#TRPBF 18 pages

Technical specifications

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC1863IGN#TRPBF
  • Interface: SPI
  • resolution: 12Bit
  • Supply Voltage: 5V
  • differential input: Yes
  • number of channels: 8
  • sampling frequency: 200kHz
  • Operating Temperature: -40°C~+85°C
  • Package: SSOP-16-150mil
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 200k
  • Number of Inputs: 8
  • Input Type: Differential, Single Ended
  • Data Interface: SPI
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: -
  • Package / Case: 16-SSOP (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC1863
  • detail: 12 Bit Analog to Digital Converter 8 Input 1 SAR 16-SSOP
