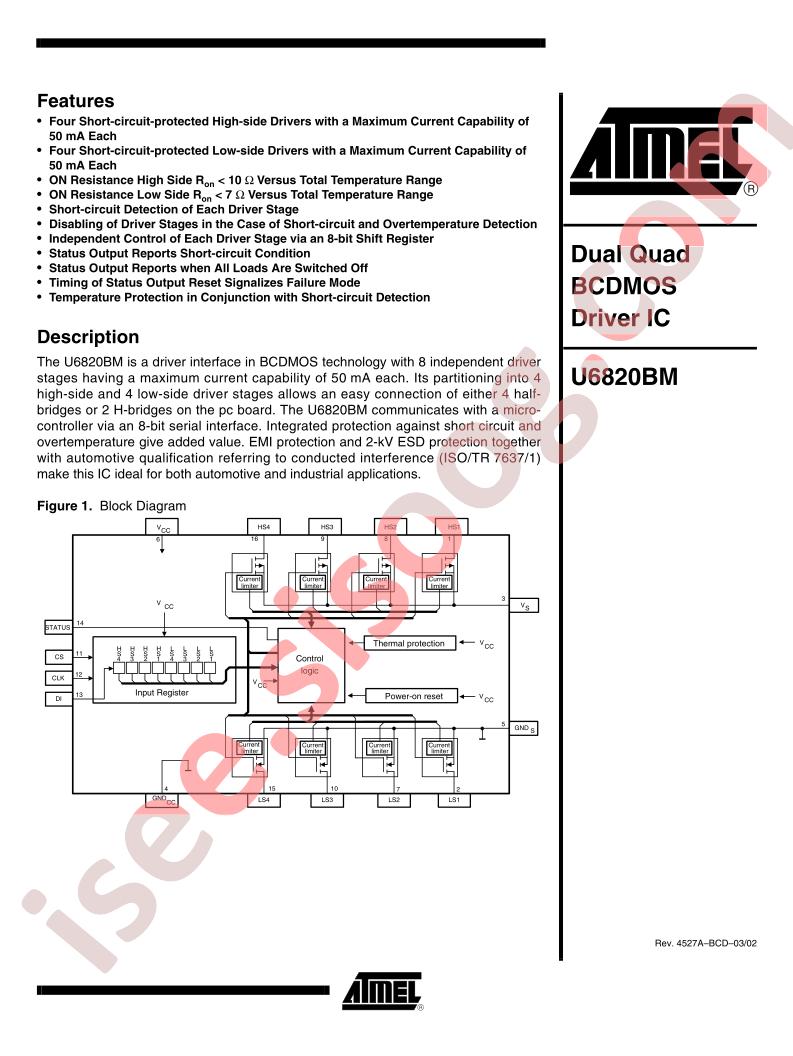

دیتاشیت U6820BM-MFPG3Y
مشخصات دیتاشیت
| نام دیتاشیت |
U6820BM
|
| حجم فایل |
234.163
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
Manufacturer:
Microchip Technology
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Output Configuration:
Half Bridge (4)
-
Applications:
General Purpose
-
Interface:
SPI
-
Load Type:
Inductive
-
Technology:
BCDMOS
-
Rds On (Typ):
4Ohm LS, 6.25Ohm HS
-
Current - Output / Channel:
-
-
Current - Peak Output:
50mA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Voltage - Load:
6V ~ 18V
-
Operating Temperature:
-40°C ~ 150°C (TJ)
-
Features:
Auto Restart, Status Flag
-
Fault Protection:
Current Limiting, ESD, Short Circuit, Over Temperature, Over Voltage, UVLO
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
16-SO
-
Base Part Number:
U6820B
-
detail:
Half Bridge (4) Driver General Purpose BCDMOS 16-SO
