دیتاشیت LTC1709EG-8#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC1709-8, LTC1709-9 |
|---|---|
| حجم فایل | 272.777 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت LTC1709-8, LTC1709-9 |

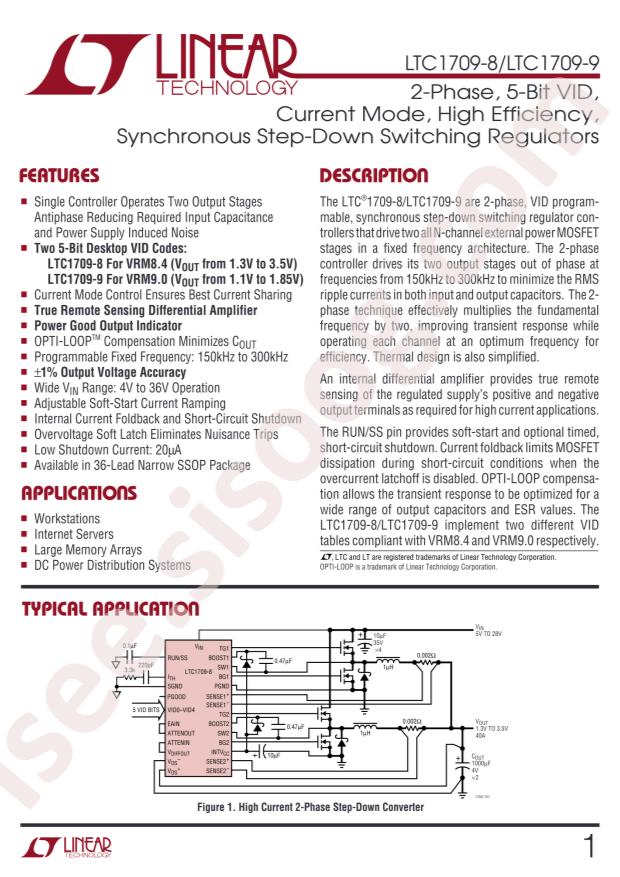

LTC1709-8, LTC1709-9 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC1709EG-8#PBF
- Input Voltage: 4V~36V
- Duty Cycle (Max): 99.5%
- Number of Outputs: 2
- Switching Frequency: 320kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: SSOP-36-5.6mm
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 4V ~ 36V
- Frequency - Switching: 140kHz ~ 320kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Enable, Power Good, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 36-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 36-SSOP
- Base Part Number: LTC1709
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 36-SSOP
