دیتاشیت LT3745IUJ-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3745-1 |
|---|---|
| حجم فایل | 390.861 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

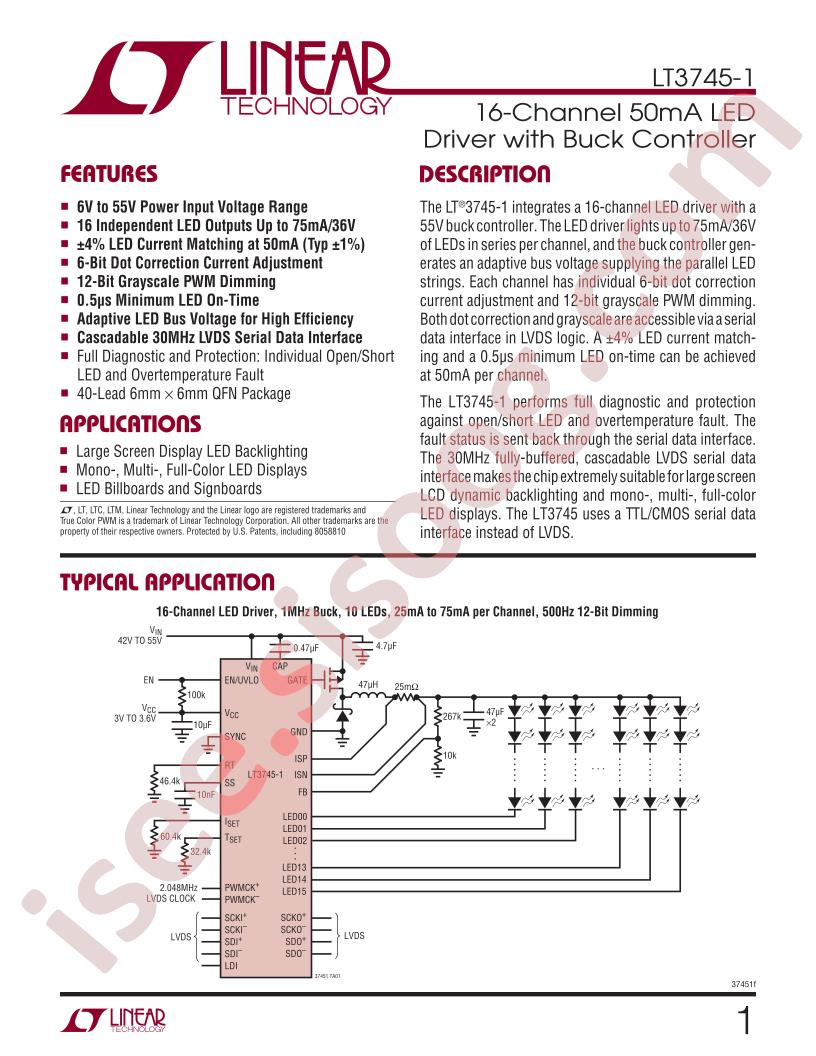

دانلود دیتاشیت LT3745-1 |
LT3745-1 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: DC-DCController
- Dimming: PWM
- Category: Nixie Tube Driver/LED Driver/LED Drivers
- Channels: 16
- Topology: Step-down
- Datasheet: Analog Devices LT3745IUJ-1#TRPBF
- Input Voltage: 6V~55V
- Output Current: 75mA
- Output Voltage: 36V
- Switch Frequency: 200kHz~1MHz
- Operating temperature: -40°C~+125°C
- Package: QFN-40-EP(6x6)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Internal Switch(s): No
- Number of Outputs: 16
- Voltage - Supply (Min): 6V
- Voltage - Supply (Max): 55V
- Voltage - Output: 36V
- Current - Output / Channel: 75mA
- Frequency: 200kHz ~ 1MHz
- Applications: Backlight, Signage
- Mounting Type: Surface Mount
- Package / Case: 40-WFQFN Exposed Pad
- Supplier Device Package: 40-QFN (6x6)
- Base Part Number: LT3745
- detail: LED Driver IC 16 Output DC DC Controller Step-Down (Buck) PWM Dimming 75mA 40-QFN (6x6)
