SI8233BD-D-ISR 数据手册
其他文档

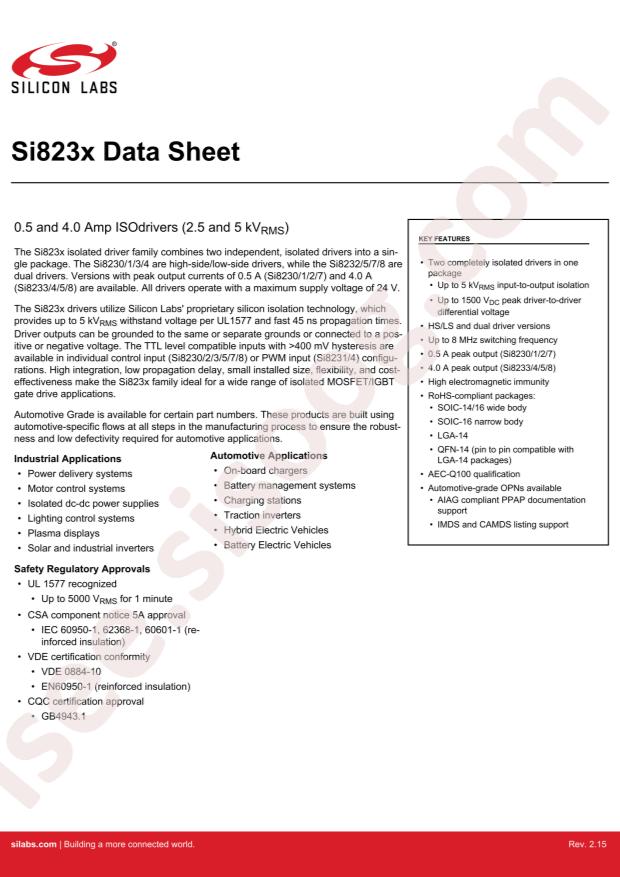

SI823x Datasheet 58 pages
技术规格
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Digital Isolators
- Datasheet: SILICON LABS SI8233BD-D-ISR
- Applications: -
- Isolation Technology: -
- Voltage Isolation or Not: -
- Package: SOP-16-300mil
- Manufacturer: SILICON LABS
- Current - Peak Output: 4A
- Packaging: Cut Tape (CT)
- Voltage - Output Supply: 9.4V ~ 24V
- Voltage - Forward (Vf) (Typ): -
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Approval Agency: CQC, CSA, UR, VDE
- Mounting Type: Surface Mount
- Part Status: Active
- Operating Temperature: -40°C ~ 125°C
- Common Mode Transient Immunity (Min): 20kV/µs
- Pulse Width Distortion (Max): 5.6ns
- Voltage - Isolation: 5000Vrms
- Technology: Capacitive Coupling
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Number of Channels: 2
- Rise / Fall Time (Typ): 12ns, 12ns (Max)
- Current - Output High, Low: 2A, 4A
- Series: Automotive, AEC-Q100
- Supplier Device Package: 16-SOIC
- detail: 4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
