TO-220-5 Flow 31 Pkg Drawing Datasheet

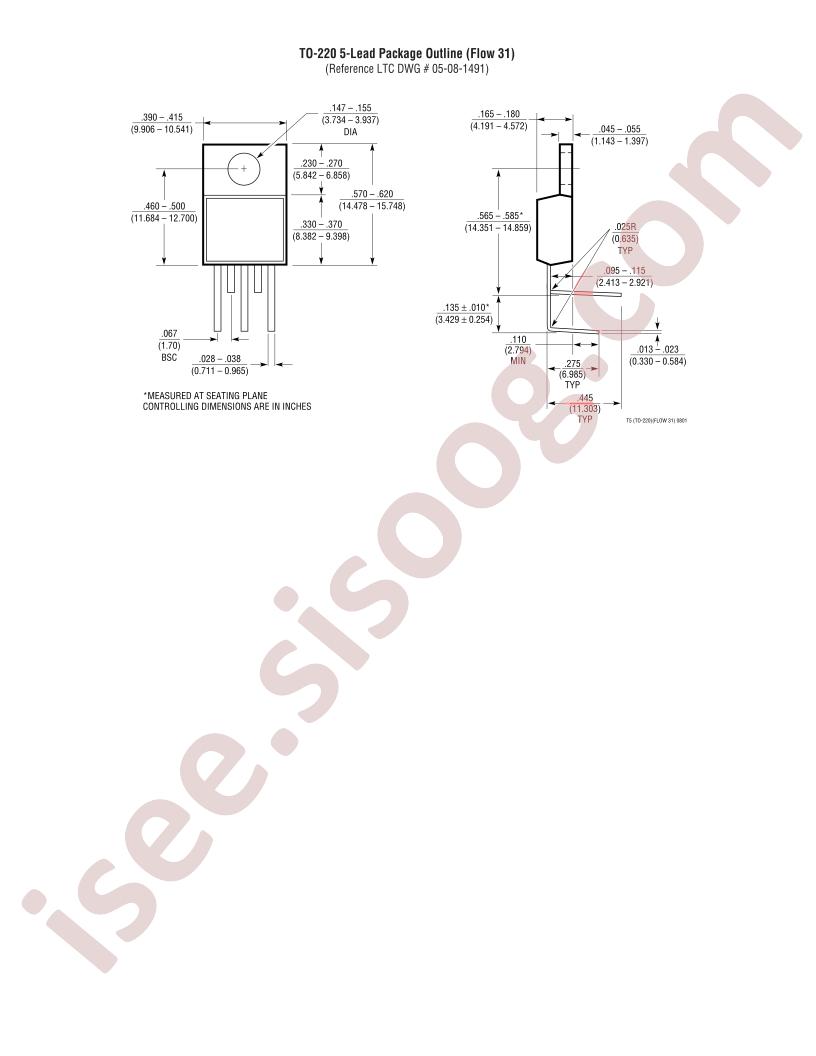

TO-220-5 Flow 31 Pkg Drawing

Datasheet specifications

Datasheet's name TO-220-5 Flow 31 Pkg Drawing
File size 27.055 KB
File type pdf
Number of pages 1

Download Datasheet TO-220-5 Flow 31 Pkg Drawing

Download Datasheet

Other documentations

LT1185 Datasheet 16 pages

LT1185CT#06PBF 16 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Analog Devices LT1185IT#31PBF
  • Package: TO-220-5
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Output Configuration: Positive or Negative
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): -35V
  • Voltage - Output (Min/Fixed): ±2.5V
  • Voltage - Output (Max): ±25V
  • Voltage Dropout (Max): 1V @ 3A
  • Current - Output: 3A
  • Current - Quiescent (Iq): 3.5mA
  • PSRR: -
  • Control Features: -
  • Protection Features: Over Current
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Through Hole
  • Package / Case: TO-220-5 Formed Leads
  • Supplier Device Package: TO-220-5 Flow 31
  • Base Part Number: LT1185
  • detail: Linear Voltage Regulator IC 1 Output 3A TO-220-5 Flow 31
