دیتاشیت LT1765EFE-1.8#TRPBF

مشخصات دیتاشیت

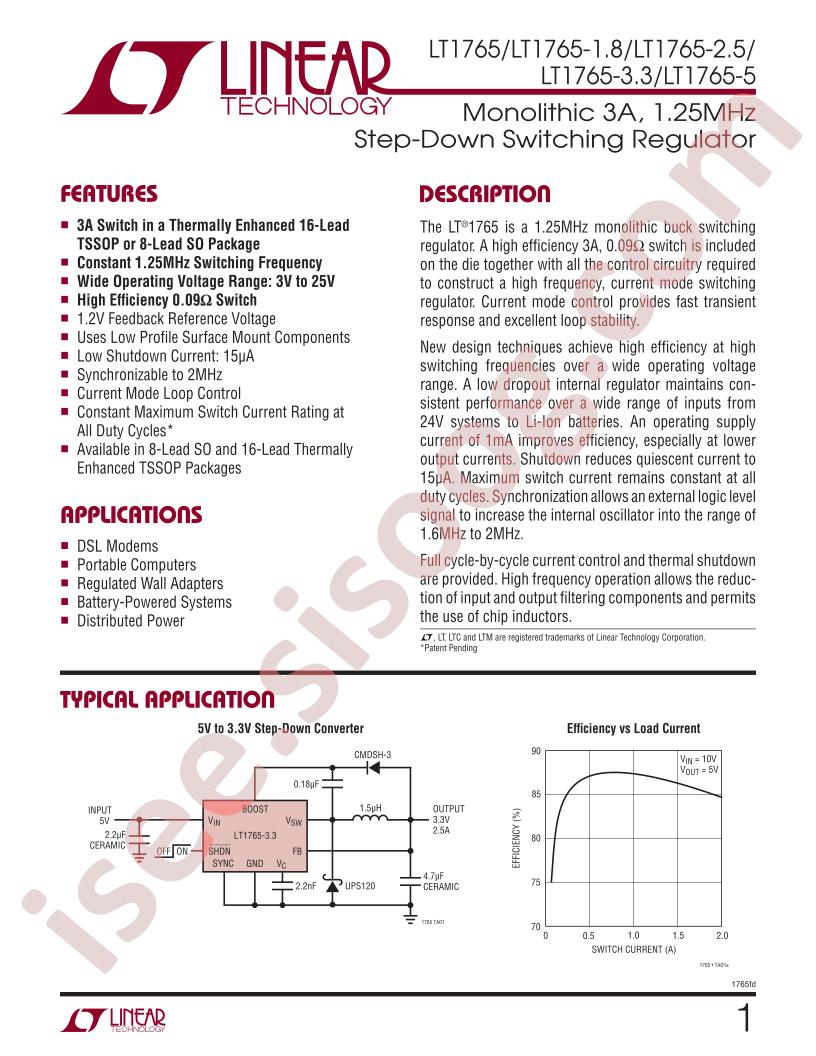

دانلود دیتاشیت LT1765(-1.8,2.5,3.3,5) Datasheet	LT1765(-1.8,2.5,3.3,5) Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices LT1765EFE-1.8#TRPBF
Output Type: Fixed
Input Voltage: 3V~25V
Output Voltage: 1.8V
Number of Outputs: 1
Switching Frequency: 1.25MHz
Output Current (Max): 3A
Operating Temperature: 0°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: TSSOP-16-EP
Manufacturer: Analog Devices
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 3V
Voltage - Input (Max): 25V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Max): -
Current - Output: 3A
Frequency - Switching: 1.25MHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 16-TSSOP-EP
Base Part Number: LT1765
detail: Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 3A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
