دیتاشیت LTC3827IG-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3827-1 |
|---|---|
| حجم فایل | 457.753 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
دانلود دیتاشیت LTC3827-1 |

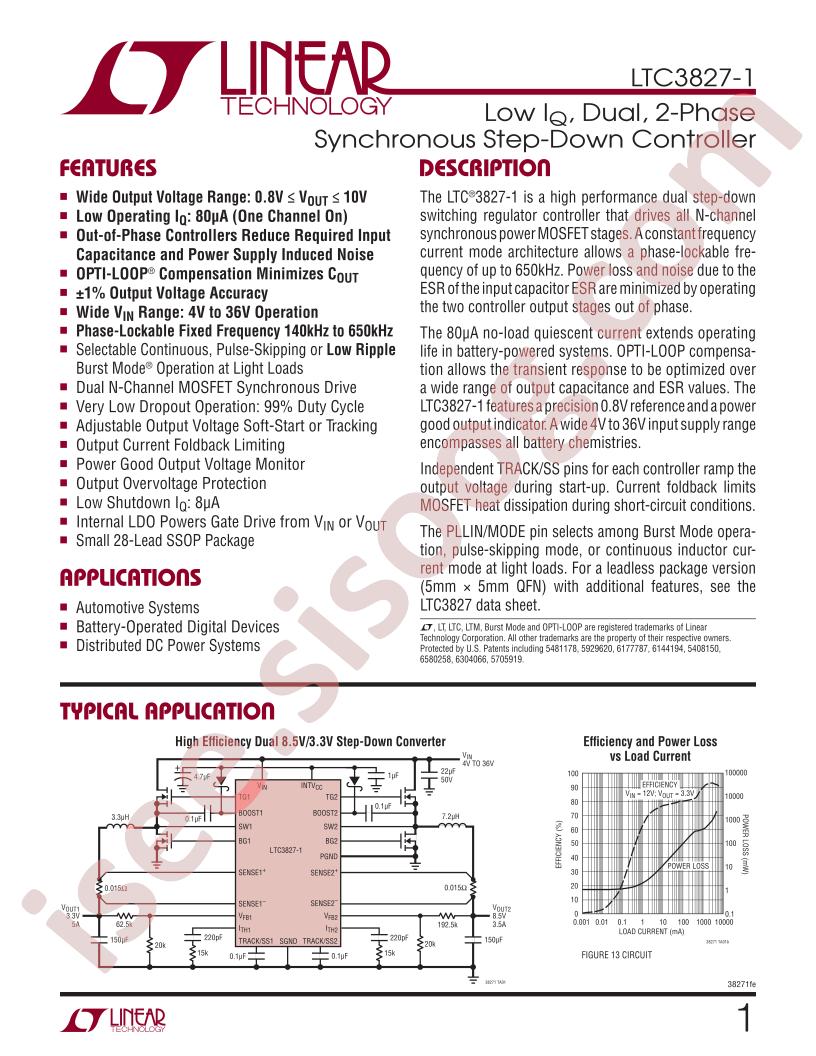

LTC3827-1 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices LTC3827IG-1#TRPBF
- Input Voltage: 4V~36V
- Duty Cycle (Max): 99.4%
- Number of Outputs: 2
- Switching Frequency: 530kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: SSOP-28-208mil
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 4V ~ 36V
- Frequency - Switching: 250kHz ~ 530kHz
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Enable, Power Good, Soft Start, Tracking
- Mounting Type: Surface Mount
- Package / Case: 28-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 28-SSOP
- Base Part Number: LTC3827
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-SSOP
