دیتاشیت LTC3722EGN-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3722-1,-2 |
|---|---|
| حجم فایل | 606.797 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

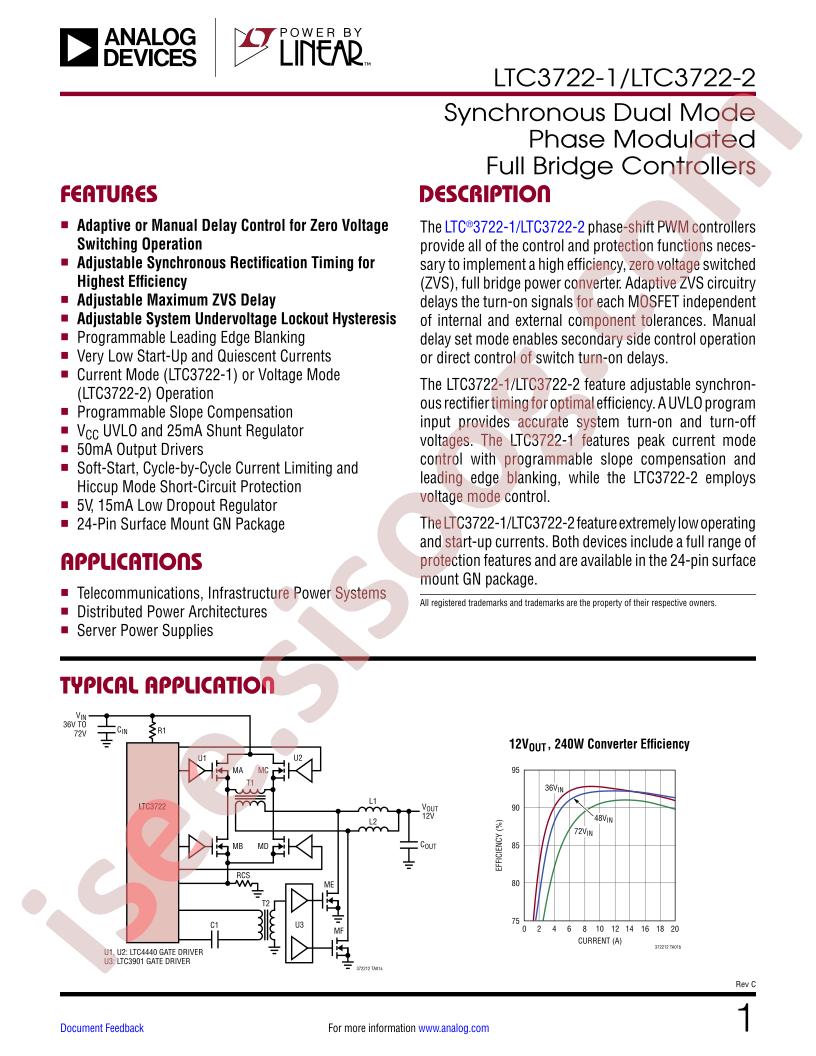

دانلود دیتاشیت LTC3722-1,-2 |
LTC3722-1,-2 Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Up/Step-Down
- Output Configuration: Positive, Isolation Capable
- Topology: Full-Bridge
- Number of Outputs: 6
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 3.8V ~ 10.25V
- Frequency - Switching: -
- Duty Cycle (Max): 98.5%
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Current Limit, Ramp, Soft Start
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package: 24-SSOP
- Base Part Number: LTC3722
- detail: Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP
