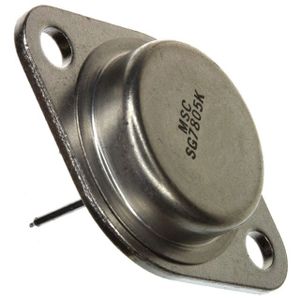

SG7805K-JAN Datasheet
Datasheet specifications
| Datasheet's name | SG78xxA/78xx |
|---|---|
| File size | 785.969 KB |
| File type | |
| Number of pages | 12 |
Download Datasheet SG78xxA/78xx |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Microchip Technology
- Series: Military, MIL-STD-883
- Packaging: Tray
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2.5V @ 500mA
- Current - Output: 1.5A
- Current - Supply (Max): 7mA
- PSRR: 68dB (120Hz)
- Control Features: Current Limit, Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: TO-204AA, TO-3
- Supplier Device Package: TO-204AD (TO-3)
- Notification: QPL or Military Specs are for reference only. Parts are not for military use. See Terms and Conditions.
- Base Part Number: SG7805
- detail: Linear Voltage Regulator IC 1 Output 1.5A TO-204AD (TO-3)
