SI8273AB-IM1 Datasheet

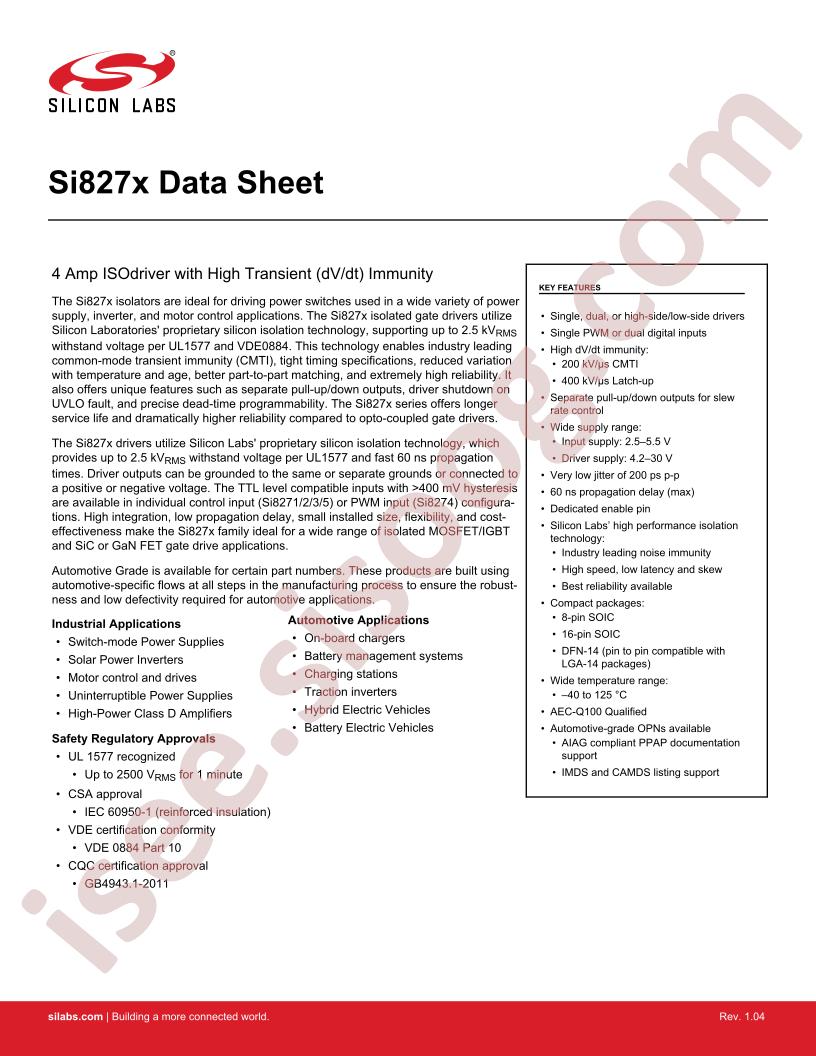

SI827x Datasheet

Datasheet specifications

Datasheet's name SI827x Datasheet
File size 1098.85 KB
File type pdf
Number of pages 44

Download Datasheet SI827x Datasheet

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Number of Channels: 2
  • Voltage - Forward (Vf) (Typ): -
  • Current - Output High, Low: 1.8A, 4A
  • Rise / Fall Time (Typ): 10.5ns, 13.3ns
  • Supplier Device Package: 14-LGA (5x5)
  • Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
  • Operating Temperature: -40°C ~ 125°C
  • Voltage - Output Supply: 4.6V ~ 30V
  • Manufacturer: Silicon Labs
  • Mounting Type: Surface Mount
  • Packaging: Tube
  • Technology: Capacitive Coupling
  • Package / Case: 14-VFLGA
  • Current - Peak Output: 4A
  • Common Mode Transient Immunity (Min): 150kV/µs
  • Approval Agency: CQC, CSA, UR, VDE
  • Voltage - Isolation: 2500Vrms
  • Series: Automotive, AEC-Q100
  • Pulse Width Distortion (Max): 8ns
  • Part Status: Obsolete
  • detail: 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
