دیتاشیت LTC1420IGN#TRPBF

LTC1420

مشخصات دیتاشیت

نام دیتاشیت LTC1420
حجم فایل 257.091 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

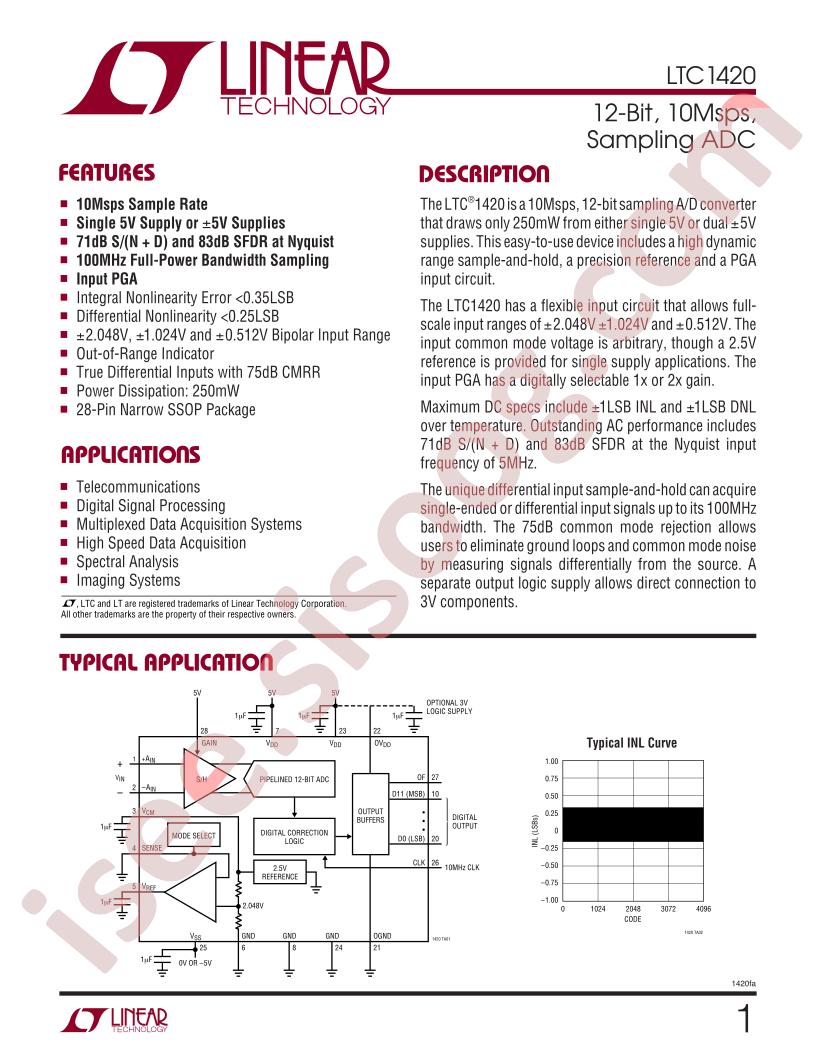

دانلود دیتاشیت LTC1420

LTC1420 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC1420IGN#TRPBF
  • Interface: Parallel
  • resolution: 12
  • Supply Voltage: 4.75V~5.25V
  • number of channels: 1
  • sampling frequency: 10MHz
  • Operating Temperature: -40°C~+85°C
  • Package: SSOP-28-150mil
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 10M
  • Number of Inputs: 1
  • Input Type: Differential, Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: ±4.75V ~ 5.25V
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Features: PGA
  • Package / Case: 28-SSOP (0.154", 3.90mm Width)
  • Supplier Device Package: 28-SSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC1420
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 28-SSOP
