دیتاشیت LTC2753IUK-12#PBF

LTC2753

مشخصات دیتاشیت

نام دیتاشیت LTC2753
حجم فایل 292.486 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت LTC2753

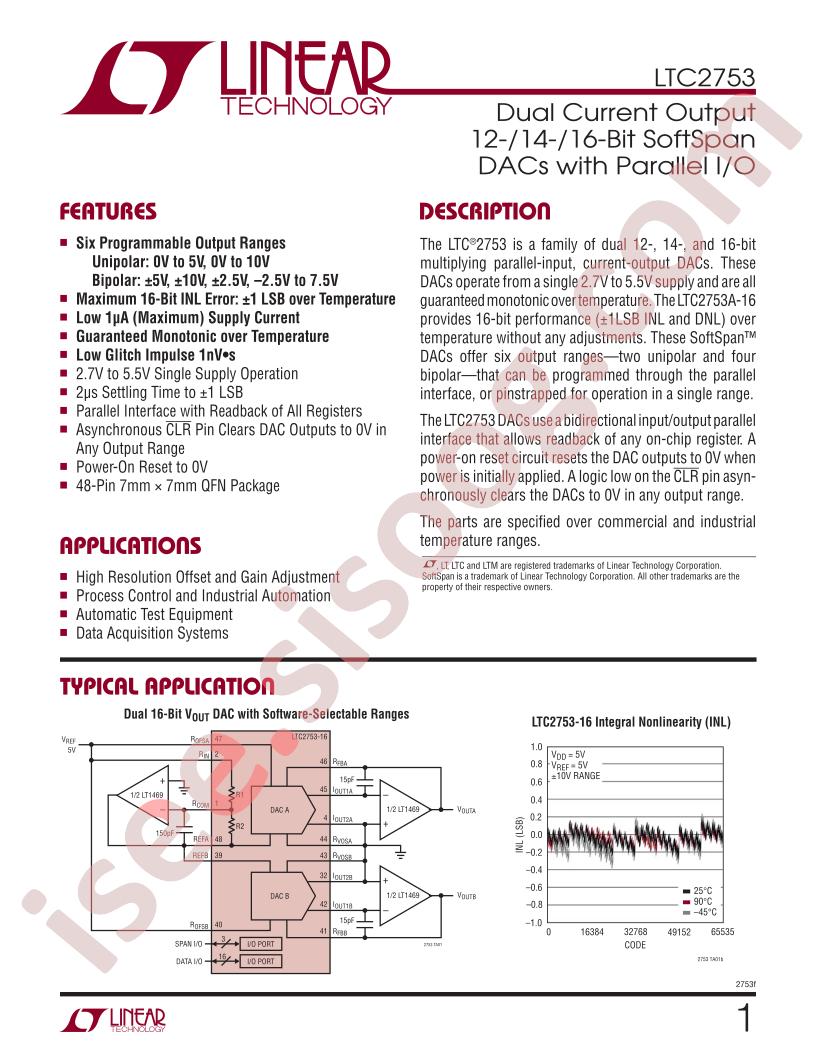

LTC2753 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC2753IUK-12#PBF
  • Interface: Parallel
  • Resolution: 12Bit
  • Output Type: Current-非缓冲
  • Settling Time: 2us
  • Supply Voltage: 2.7V~5.5V
  • Integral nonlinearity: ±1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-48-EP(7x7)
  • Manufacturer: Analog Devices
  • Series: SoftSpan™
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Number of D/A Converters: 2
  • Differential Output: Yes
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±1 (Max), ±1 (Max)
  • Architecture: Multiplying DAC
  • Package / Case: 48-WFQFN Exposed Pad
  • Supplier Device Package: 48-QFN (7x7)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2753
  • detail: 12 Bit Digital to Analog Converter 2 48-QFN (7x7)
