دیتاشیت LT1952MPGN-1#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LT1952/-1 |
|---|---|
| حجم فایل | 371.043 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت LT1952/-1 |

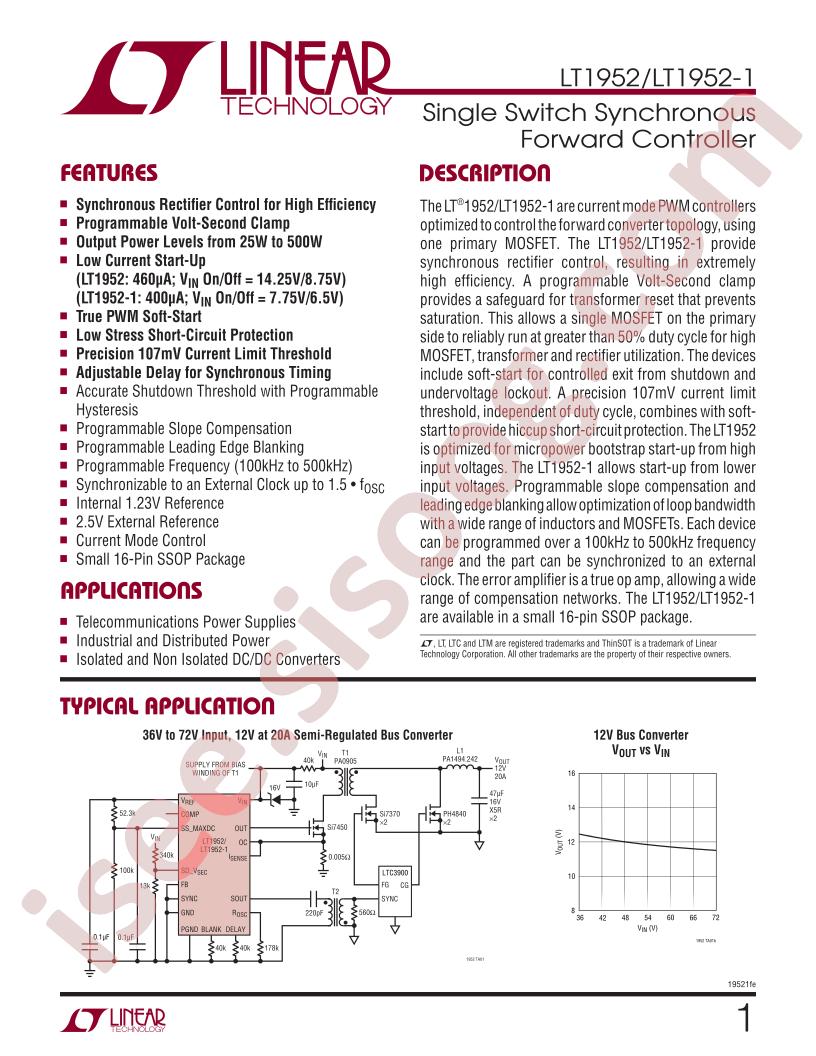

LT1952/-1 Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Up/Step-Down
- Output Configuration: Positive, Isolation Capable
- Topology: Forward Converter
- Number of Outputs: 1
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 6.82V ~ 25V
- Frequency - Switching: 100kHz ~ 500kHz
- Duty Cycle (Max): 90%
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Frequency Control
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package: 16-SSOP
- Base Part Number: LT1952
- detail: Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-SSOP
