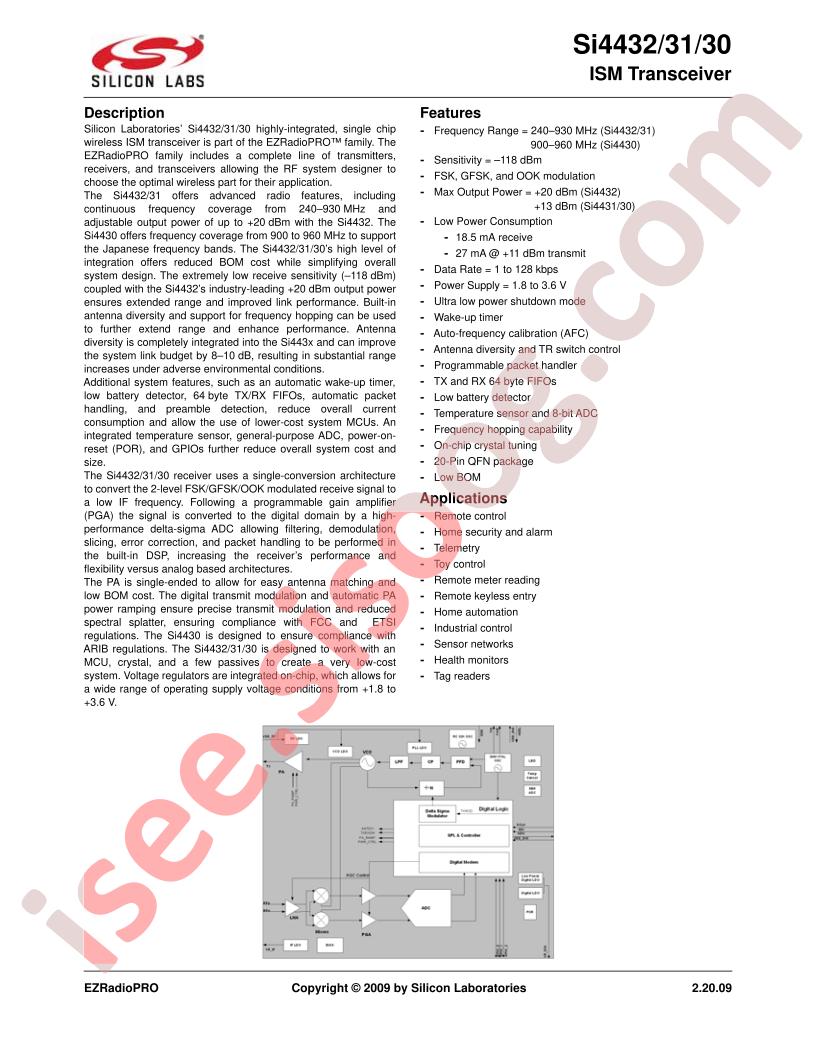

SI4432/31/30 Short Datasheet
Datasheet specifications
| Datasheet's name | SI4432/31/30 Short |
|---|---|
| File size | 1098.868 KB |
| File type | |
| Number of pages | 3 |
Download Datasheet SI4432/31/30 Short |
Download Datasheet |
|---|
Other documentations

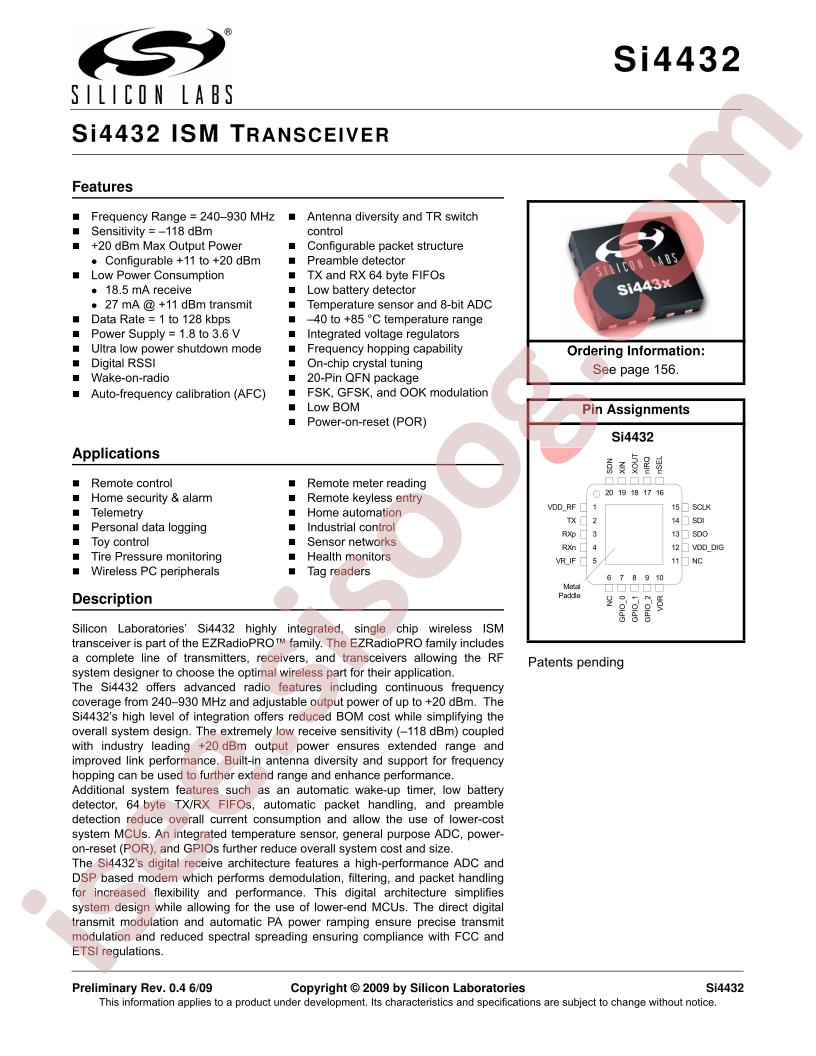

SI4432 Rev0.4 160 pages
Technical specifications
- Manufacturer: Silicon Labs
- Operating Temperature: -40°C ~ 85°C
- Sensitivity: -118dBm
- Series: -
- Voltage - Supply: 1.8V ~ 3.6V
- Type: TxRx Only
- Frequency: 240MHz ~ 930MHz
- Mounting Type: Surface Mount
- Package / Case: 20-VFQFN Exposed Pad
- Modulation: FSK, GFSK, OOK
- Supplier Device Package: 20-QFN (4x4)
- Packaging: Tube
- Data Rate (Max): 128kbps
- GPIO: 3
- Power - Output: 20dBm (Max)
- Current - Receiving: 18.5mA
- RF Family/Standard: General ISM < 1GHz
- Protocol: -
- Part Status: Not For New Designs
- Serial Interfaces: SPI
- Memory Size: -
- Current - Transmitting: 27mA ~ 80mA
- detail: IC RF TxRx Only General ISM < 1GHz 240MHz ~ 930MHz 20-VFQFN Exposed Pad
