دیتاشیت LT3045MPDD#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت |
LT3045
|
| حجم فایل |
2916.244
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
32
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-

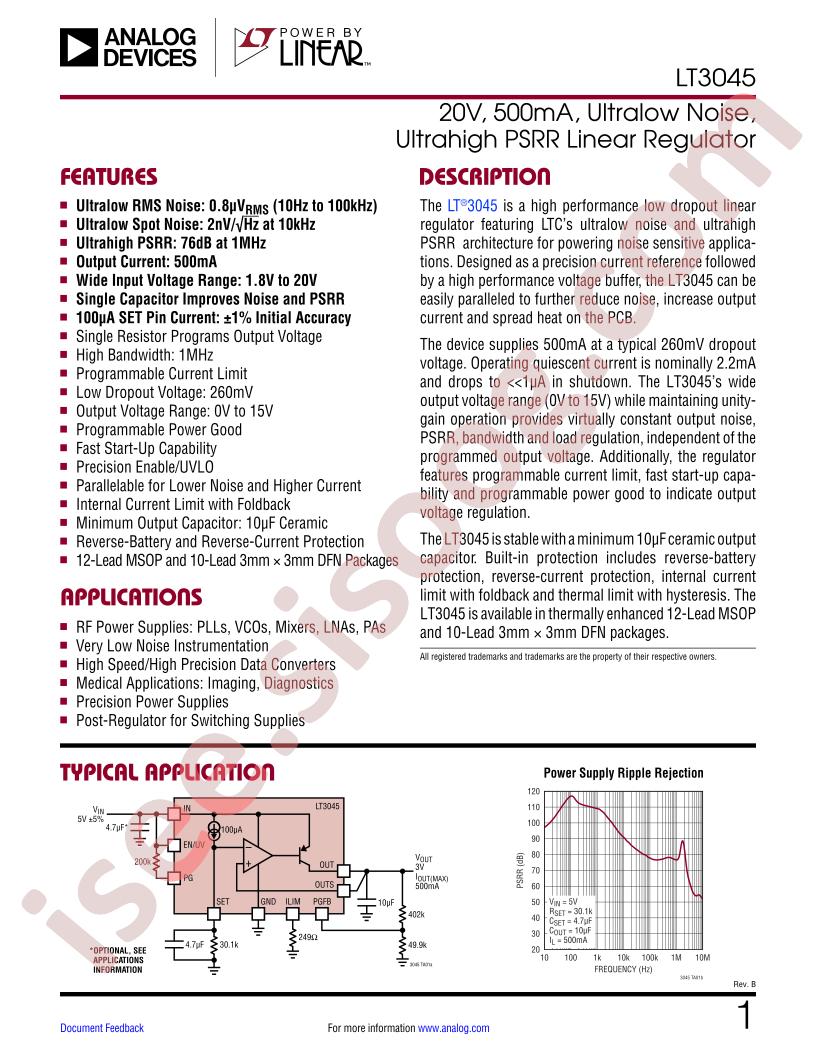

Datasheet:
Analog Devices LT3045MPDD#TRPBF
-
Output Type:
Adjustable
-
Output Current:
500mA
-
Output Voltage:
0V~15V
-
Dropout Voltage:
0.45V@(500mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
20V
-
Operating Temperature:
-55°C~+125°C@(Tj)
-
Package:
DFN-10(3x3)
-
Manufacturer:
Analog Devices
-
Series:
-
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
20V
-
Voltage - Output (Min/Fixed):
0V
-
Voltage - Output (Max):
15V
-
Voltage Dropout (Max):
0.45V @ 500mA
-
Current - Output:
500mA
-
Current - Supply (Max):
25mA
-
PSRR:
117dB ~ 53dB (120Hz ~ 10MHz)
-
Control Features:
Enable, Power Good
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Mounting Type:
Surface Mount
-
Package / Case:
10-WFDFN Exposed Pad
-
Supplier Device Package:
10-DFN (3x3)
-
detail:
Linear Voltage Regulator IC 1 Output 500mA 10-DFN (3x3)
