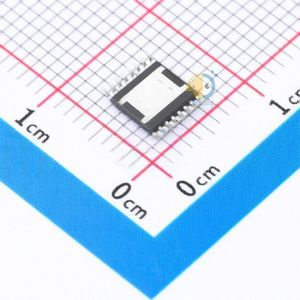

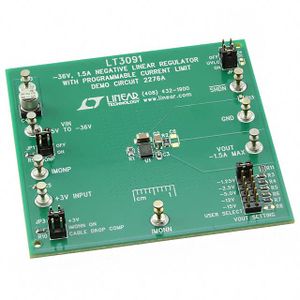

LT3091 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LT3091
|
|
حجم فایل
|
756.372
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
40
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection;Reverse connection protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Analog Devices LT3091MPR#PBF
-
Output Type:
Adjustable
-
Output Current:
1.5A
-
Output Voltage:
0V~32V
-
Dropout Voltage:
0.525V@(1.5A)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
36V
-
Operating Temperature:
-55°C~+150°C
-
Quiescent Current (Ground Current):
50.5uA
-
Power Supply Rejection Ratio (PSRR):
85dB@(120Hz)
-
Package:
TO-263-7
-
Manufacturer:
Analog Devices
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Negative
-
Number of Regulators:
1
-
Voltage - Input (Max):
-36V
-
Voltage - Output (Min/Fixed):
0V
-
Voltage - Output (Max):
-32V
-
Voltage Dropout (Max):
0.525V @ 1.5A
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
50.5µA
-
PSRR:
85dB ~ 20dB (120Hz ~ 1MHz)
-
Control Features:
Current Limit, Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
-
Supplier Device Package:
7-DDPAK
-
Base Part Number:
LT3091
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A 7-DDPAK
