دیتاشیت C8051F569-IM

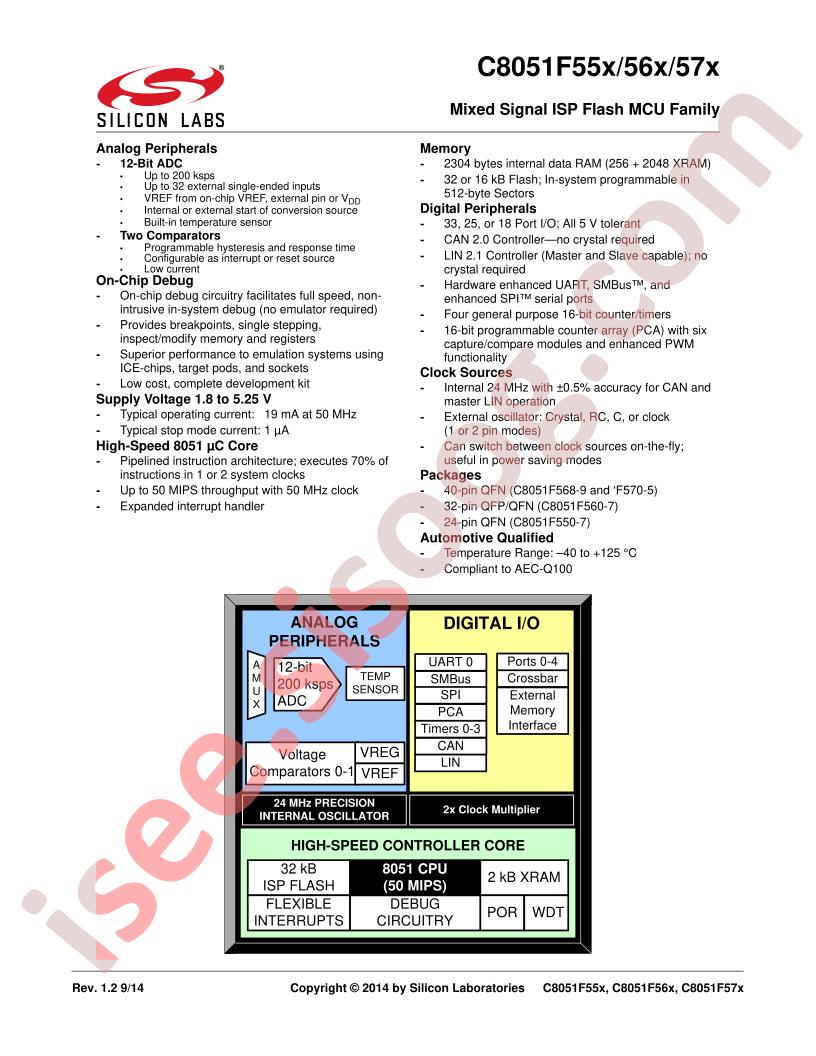

C8051F55x, 56x, 57x Datasheet

مشخصات دیتاشیت

نام دیتاشیت C8051F55x, 56x, 57x Datasheet
حجم فایل 9733.235 کیلوبایت
نوع فایل pdf
تعداد صفحات 308

دانلود دیتاشیت C8051F55x, 56x, 57x Datasheet

C8051F55x, 56x, 57x Datasheet Datasheet

مشخصات

  • RoHS: true
  • EEPROM: -
  • CPU Core: 51Series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 2.25KB
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): -
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 50MHz
  • GPIO Ports Number: 33
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: PWM;On-chip temperature sensor
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 32KB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.8V~5.25V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+125°C
  • Secure Digital Input and Output: -
  • Package: QFN-40-EP(6x6)
  • Manufacturer: SILICON LABS
  • Package / Case: 40-VFQFN Exposed Pad
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Speed: 50MHz
  • Core Processor: 8051
  • Series: C8051F56x
  • Base Part Number: C8051F56
  • Data Converters: A/D 32x12b
  • Connectivity: CANbus, EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART
  • Mounting Type: Surface Mount
  • EEPROM Size: -
  • Number of I/O: 33
  • Oscillator Type: Internal
  • Supplier Device Package: 40-QFN (6x6)
  • Program Memory Size: 32KB (32K x 8)
  • Part Status: Active
  • Core Size: 8-Bit
  • Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.25V
  • Peripherals: POR, PWM, Temp Sensor, WDT
  • Packaging: Tube
  • detail: 8051 C8051F56x Microcontroller IC 8-Bit 50MHz 32KB (32K x 8) FLASH 40-QFN (6x6)
