دیتاشیت LTC2250IUH#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC2251, LTC2250 |
|---|---|
| حجم فایل | 610.816 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |

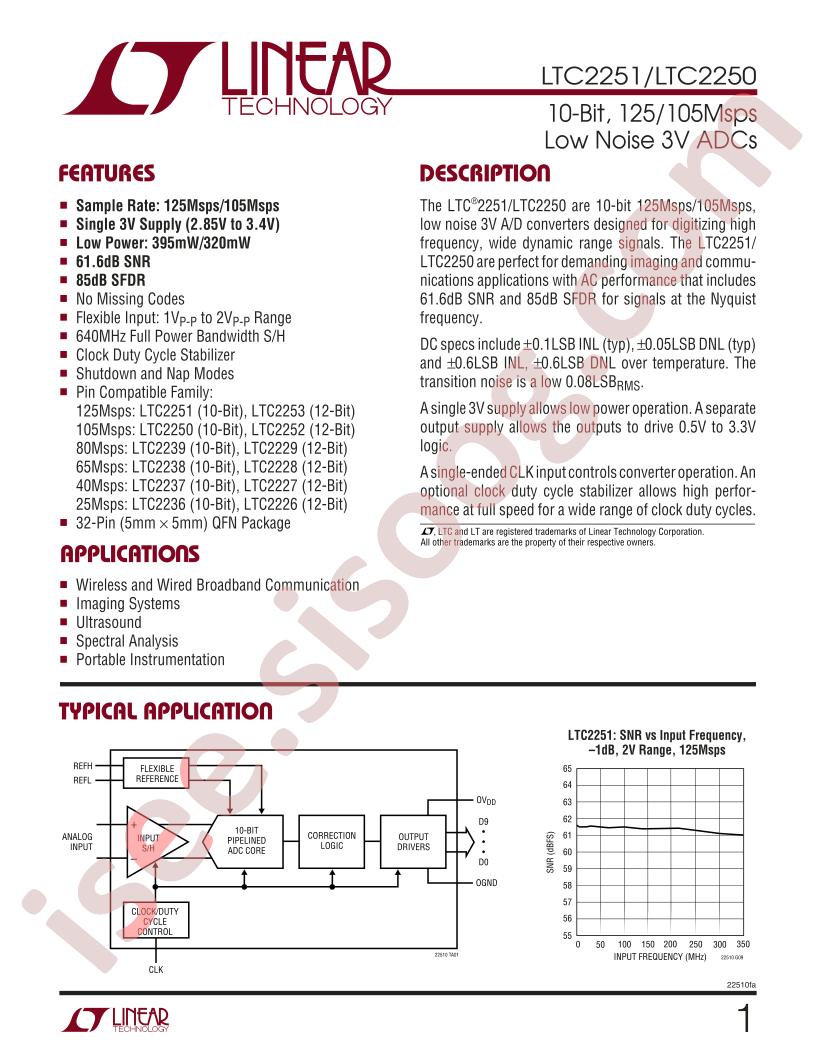

دانلود دیتاشیت LTC2251, LTC2250 |
LTC2251, LTC2250 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices LTC2250IUH#TRPBF
- Interface: Parallel
- resolution: 10Bit
- Supply Voltage: 2.85V~3.4V
- differential input: Yes
- number of channels: 1
- sampling frequency: 105MHz
- Operating Temperature: -40°C~+85°C
- Package: QFN-32-EP(5x5)
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 10
- Sampling Rate (Per Second): 105M
- Number of Inputs: 1
- Input Type: Differential, Single Ended
- Data Interface: Parallel
- Configuration: S/H-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 1
- Architecture: Pipelined
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.85V ~ 3.4V
- Voltage - Supply, Digital: 2.85V ~ 3.4V
- Features: -
- Package / Case: 32-WFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
- Mounting Type: Surface Mount
- Base Part Number: LTC2250
- detail: 10 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-QFN (5x5)
