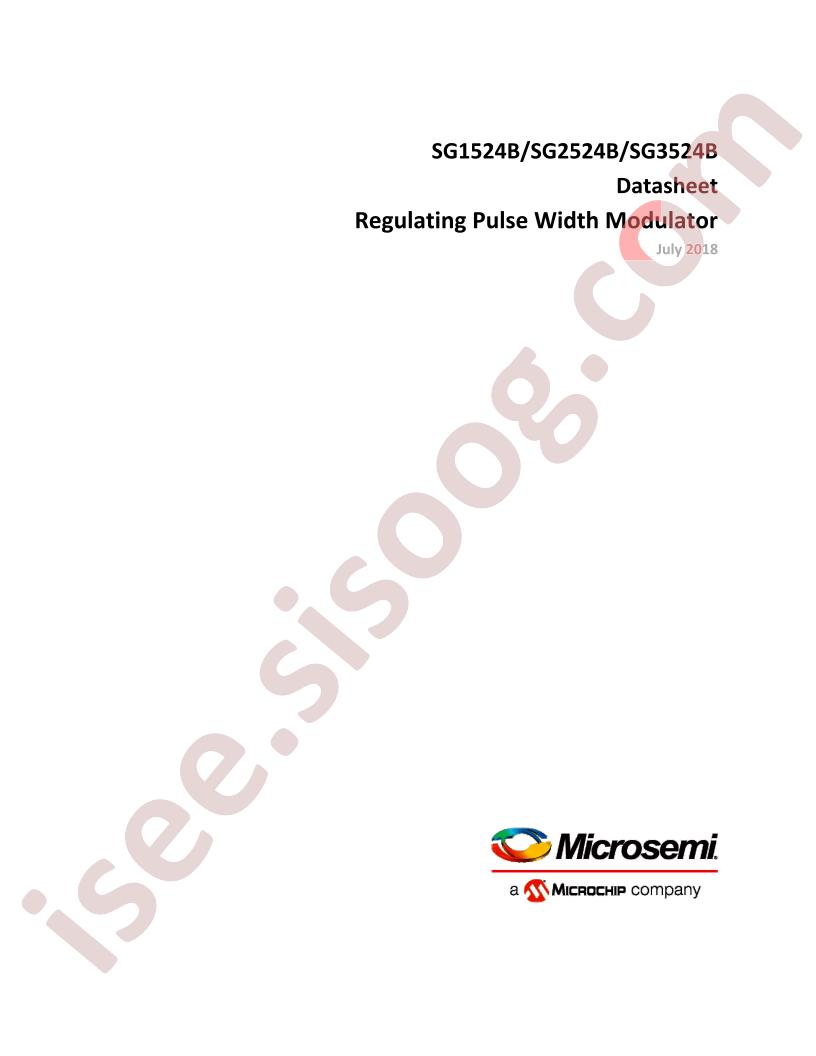

SG1524B,2524B,3524B دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت SG1524B,2524B,3524B	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: Microchip Technology
Series: Military, MIL-STD-883B
Packaging: Tube
Part Status: Obsolete
Output Type: Transistor Driver
Function: -
Output Configuration: Positive
Topology: -
Number of Outputs: 2
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 7V ~ 40V
Frequency - Switching: 50Hz ~ 600kHz
Duty Cycle (Max): 49%
Synchronous Rectifier: No
Clock Sync: Yes
Serial Interfaces: -
Control Features: Enable, Frequency Control
Operating Temperature: -55°C ~ 125°C (TA)
Mounting Type: Through Hole

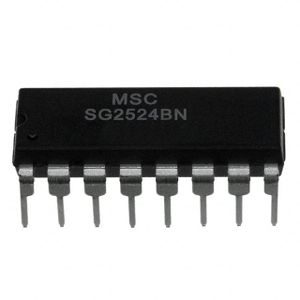

Package / Case: 16-CDIP (0.300", 7.62mm)
Supplier Device Package: 16-CDIP
Notification: QPL or Military Specs are for reference only. Parts are not for military use. See Terms and Conditions.
detail: Regulator Positive Output DC-DC Controller IC 16-CDIP
