دیتاشیت LT3055MPMSE-3.3#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LT3055 |
|---|---|
| حجم فایل | 1853.678 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |

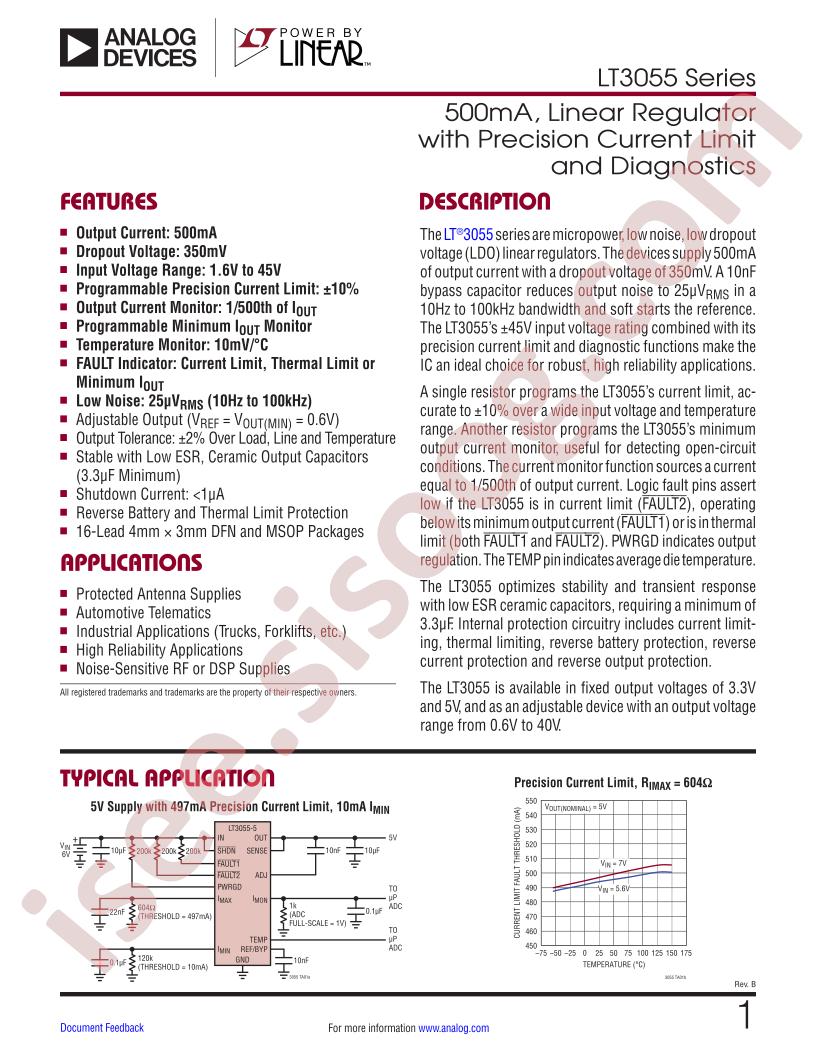

دانلود دیتاشیت LT3055 |
LT3055 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Analog Devices LT3055MPMSE-3.3#PBF
- Output Current: 500mA
- Output Voltage: 3.3V
- Dropout Voltage: 0.59V@(500mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 45V
- Operating Temperature: -55°C~+150°C
- Quiescent Current (Ground Current): 130uA
- Power Supply Rejection Ratio (PSRR): 70dB@(120Hz)
- Package: MSOP-16-EP
- Manufacturer: Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 45V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.59V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 130µA
- Current - Supply (Max): 25mA
- PSRR: 70dB (120Hz)
- Control Features: Current Limit, Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 16-TFSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 16-MSOP-EP
- Base Part Number: LT3055
- detail: Linear Voltage Regulator IC 1 Output 500mA 16-MSOP-EP
