دیتاشیت ATA6286C-PNQW

ATA6286C

مشخصات دیتاشیت

نام دیتاشیت ATA6286C
حجم فایل 9446.677 کیلوبایت
نوع فایل pdf
تعداد صفحات 183

دانلود دیتاشیت ATA6286C

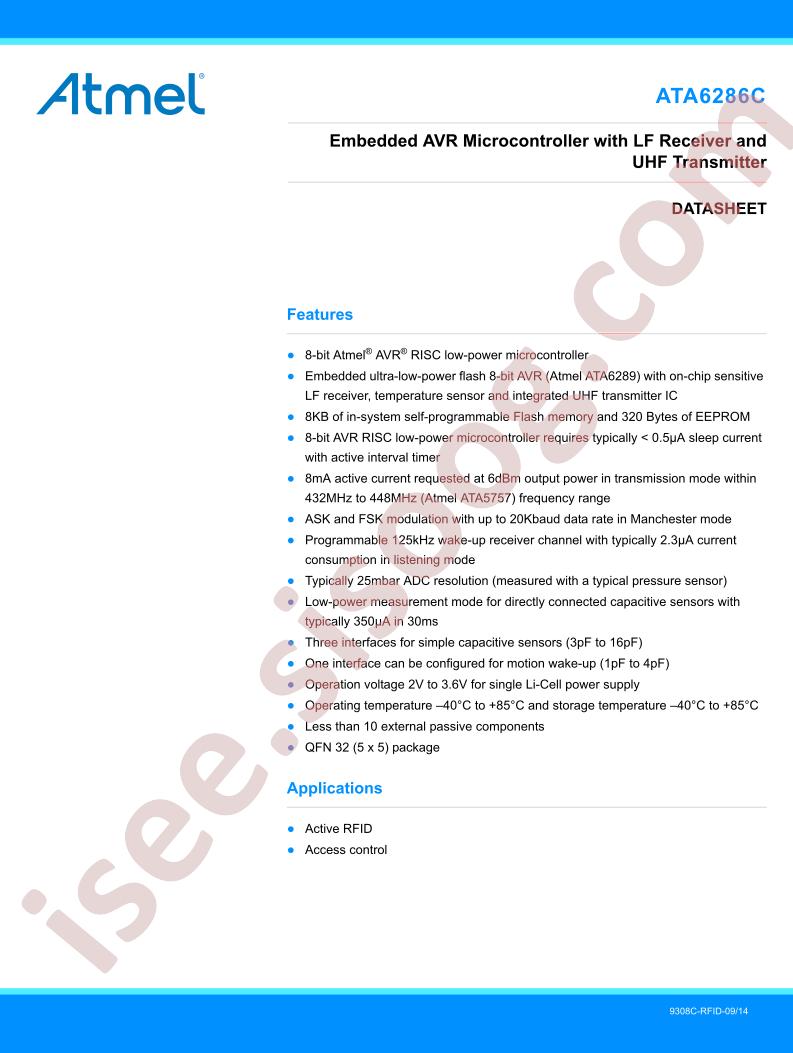

ATA6286C Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Frequency: 433MHz
  • Applications: TPM (Tire Pressure Monitor)
  • Modulation or Protocol: ASK, FSK
  • Data Rate (Max): 20kbps
  • Power - Output: 6dBm
  • Current - Transmitting: 8.5mA
  • Data Interface: PCB, Surface Mount
  • Antenna Connector: PCB, Surface Mount
  • Memory Size: 8kB Flash, 512B SRAM
  • Features: -
  • Voltage - Supply: 1.9V ~ 3.6V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 32-VFQFN Exposed Pad
  • Supplier Device Package: 32-QFN (5x5)
  • Base Part Number: ATA6286C
  • detail: RF Transmitter ASK, FSK 433MHz 6dBm 20kbps PCB, Surface Mount Antenna 32-VFQFN Exposed Pad
