دیتاشیت SI82397CD-IS

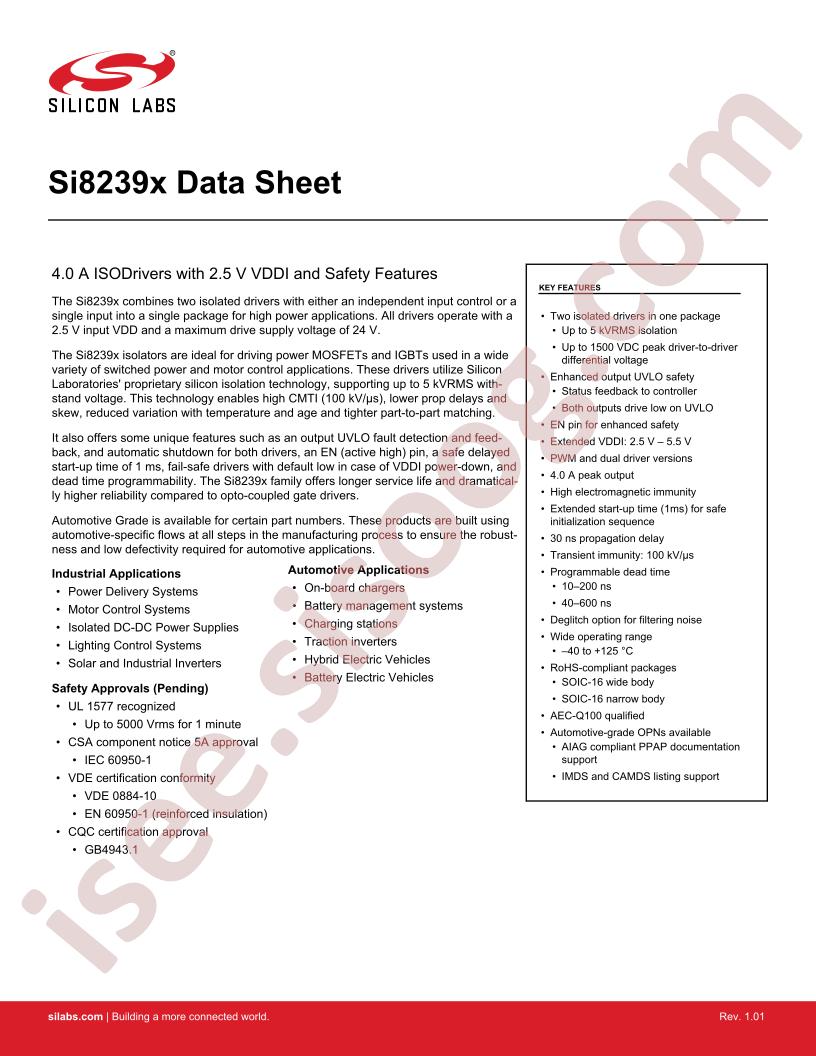

Si8239x Datasheet

مشخصات دیتاشیت

نام دیتاشیت Si8239x Datasheet
حجم فایل 1243.918 کیلوبایت
نوع فایل pdf
تعداد صفحات 41

دانلود دیتاشیت Si8239x Datasheet

Si8239x Datasheet Datasheet

مشخصات

  • Manufacturer: Silicon Labs
  • Package / Case: 16-SOIC (0.295", 7.50mm Width)
  • Rise / Fall Time (Typ): 12ns, 12ns (Max)
  • Number of Channels: 2
  • Approval Agency: CQC, CSA, UR, VDE
  • Pulse Width Distortion (Max): 5.6ns
  • Technology: Capacitive Coupling
  • Voltage - Forward (Vf) (Typ): -
  • Current - Peak Output: 4A
  • Series: Automotive, AEC-Q100
  • Voltage - Output Supply: 12.8V ~ 24V
  • Operating Temperature: -40°C ~ 125°C
  • Common Mode Transient Immunity (Min): 35kV/µs
  • Current - Output High, Low: 2A, 4A
  • Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
  • Part Status: Active
  • Voltage - Isolation: 5000Vrms
  • Mounting Type: Surface Mount
  • Supplier Device Package: 16-SOIC
  • Packaging: Tube
  • detail: 4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
