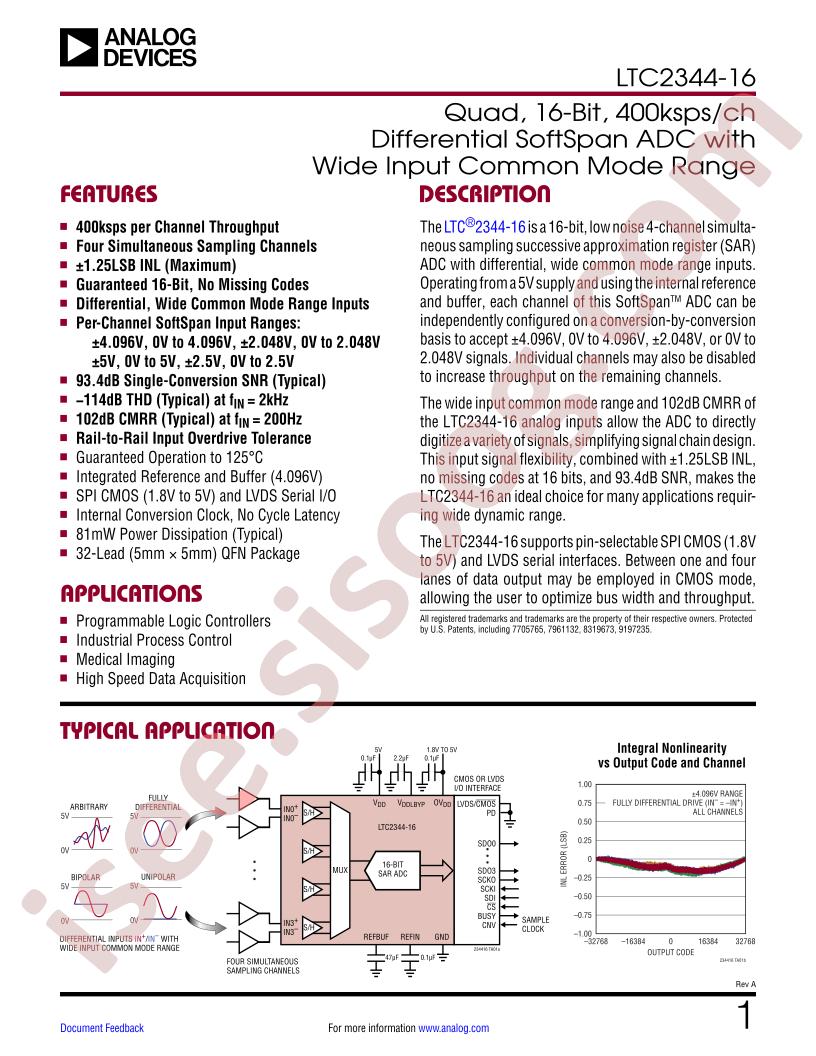

دیتاشیت LTC2344CUH-16#TRPBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC2344-16 Datasheet |
|---|---|
| حجم فایل | 1478.418 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |
دانلود دیتاشیت LTC2344-16 Datasheet |
LTC2344-16 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Analog Devices LTC2344CUH-16#TRPBF
- Interface: serial;SPI
- resolution: 16
- Supply Voltage: 5V
- number of channels: 4
- sampling frequency: 400kHz
- Operating Temperature: 0°C~+70°C
- Package: QFN-32-EP(5x5)
- Manufacturer: Analog Devices
- Series: SoftSpan™
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Number of Bits: 16
- Sampling Rate (Per Second): 400k
- Number of Inputs: 4
- Input Type: Differential
- Data Interface: LVDS - Serial, SPI
- Configuration: S/H-MUX-ADC
- Ratio - S/H:ADC: 1:1
- Number of A/D Converters: 4
- Architecture: SAR
- Reference Type: External, Internal
- Voltage - Supply, Analog: 5V
- Voltage - Supply, Digital: 5V
- Features: Simultaneous Sampling
- Package / Case: 32-WFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
- Mounting Type: Surface Mount
- Base Part Number: LTC2344
- detail: 16 Bit Analog to Digital Converter 4 Input 4 SAR 32-QFN (5x5)
