دیتاشیت LTC2258IUJ-12#PBF

LTC2256/57/58-12

مشخصات دیتاشیت

نام دیتاشیت LTC2256/57/58-12
حجم فایل 1013.349 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LTC2256/57/58-12

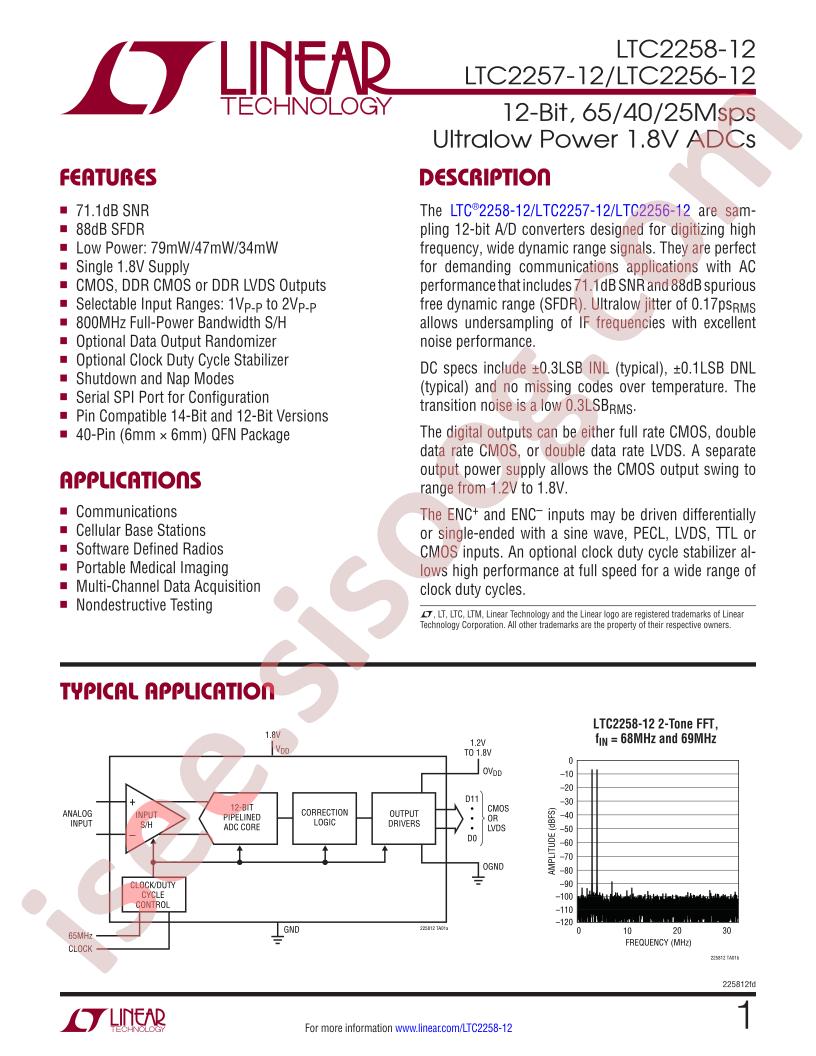

LTC2256/57/58-12 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 65M
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: LVDS - Parallel, Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 1.7V ~ 1.9V
  • Voltage - Supply, Digital: 1.7V ~ 1.9V
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 40-WFQFN Exposed Pad
  • Supplier Device Package: 40-QFN (6x6)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2258
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 40-QFN (6x6)
