دیتاشیت LTC2324IUKG-16#TRPBF

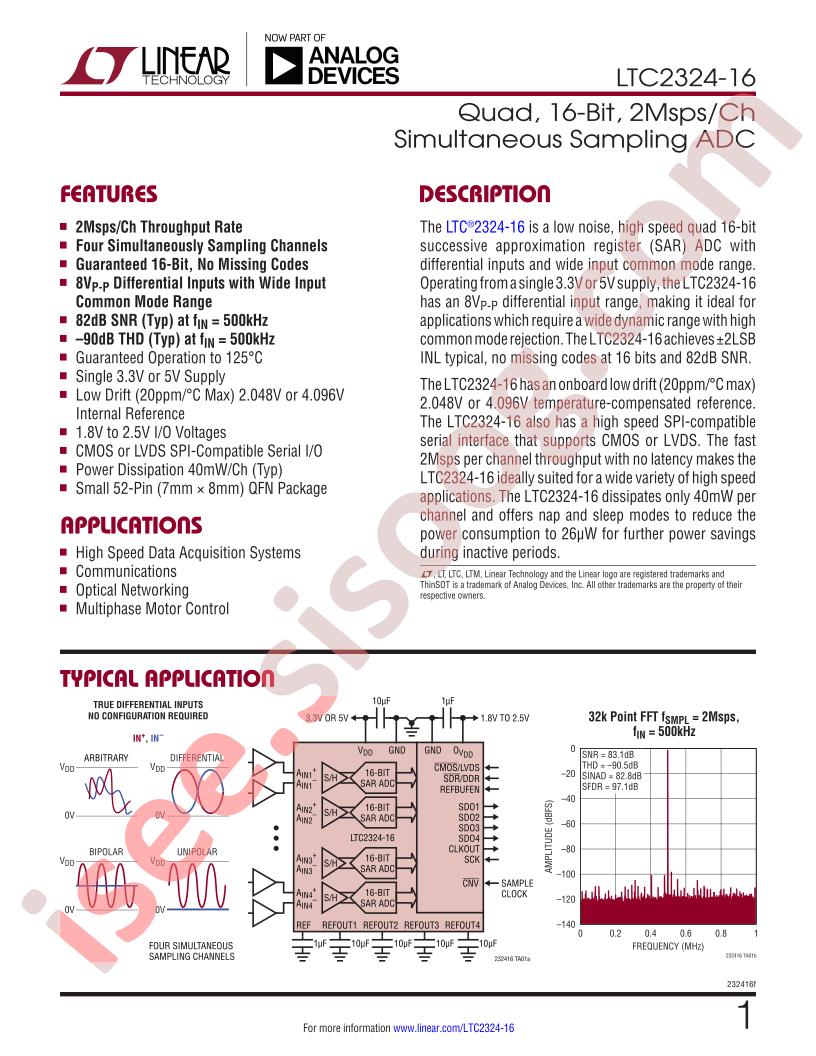

LTC2324-16 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC2324-16 Datasheet
حجم فایل 1491.304 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت LTC2324-16 Datasheet

LTC2324-16 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 16
  • Sampling Rate (Per Second): 2M
  • Number of Inputs: 4
  • Input Type: Differential
  • Data Interface: LVDS - Parallel, SPI
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 4
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 3.13V ~ 3.47V, 5V
  • Voltage - Supply, Digital: 3.13V ~ 3.47V, 5V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 52-WFQFN Exposed Pad
  • Supplier Device Package: 52-QFN (7x8)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2324
  • detail: 16 Bit Analog to Digital Converter 4 Input 4 SAR 52-QFN (7x8)
