دیتاشیت LTC3892MPFE-1#PBF
مشخصات دیتاشیت
| نام دیتاشیت | LTC3892 |
|---|---|
| حجم فایل | 1374.512 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
دانلود دیتاشیت LTC3892 |

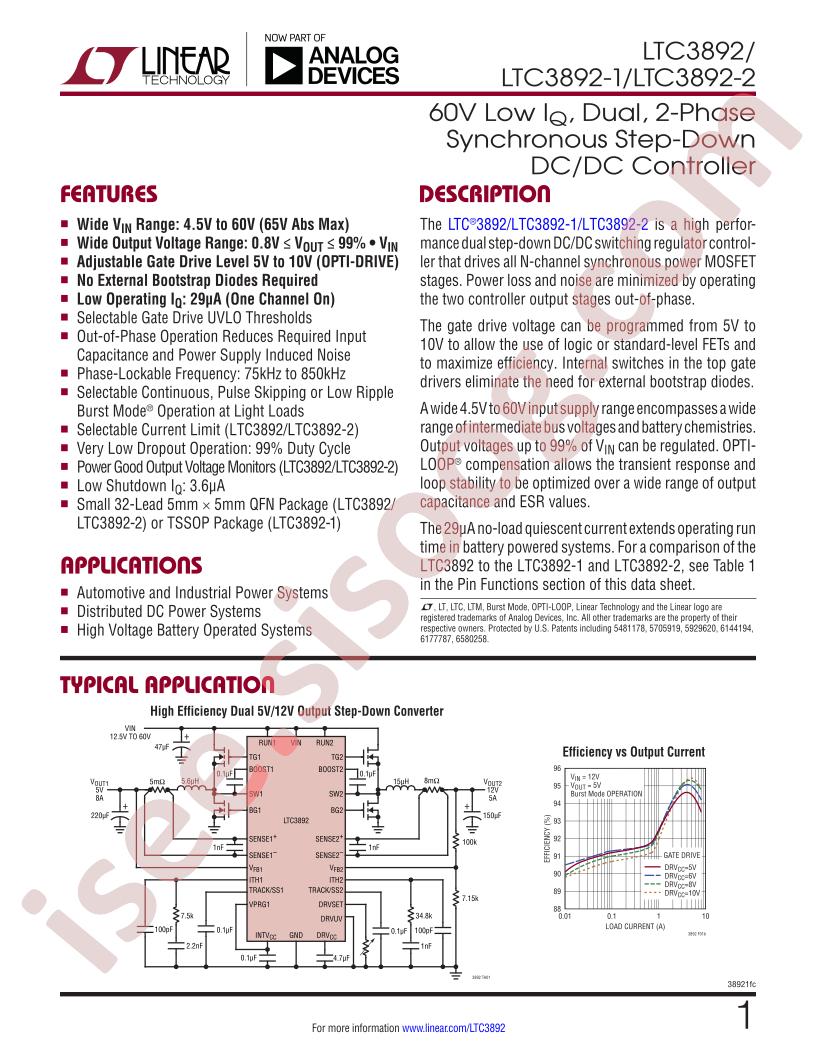

LTC3892 Datasheet |
|---|
مشخصات
- Manufacturer: Linear Technology/Analog Devices
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Number of Outputs: 2
- Output Phases: 2
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V
- Frequency - Switching: 105kHz ~ 835kHz, 350kHz ~ 535kHz
- Duty Cycle (Max): 99%
- Synchronous Rectifier: Yes
- Clock Sync: No
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 28-TSSOP-EP
- Base Part Number: LTC3892
- detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-TSSOP-EP
