دیتاشیت ATWINC1500-MR210PA
مشخصات دیتاشیت
| نام دیتاشیت | ATWINC1500-MR210PA Datasheet |
|---|---|
| حجم فایل | 903.407 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

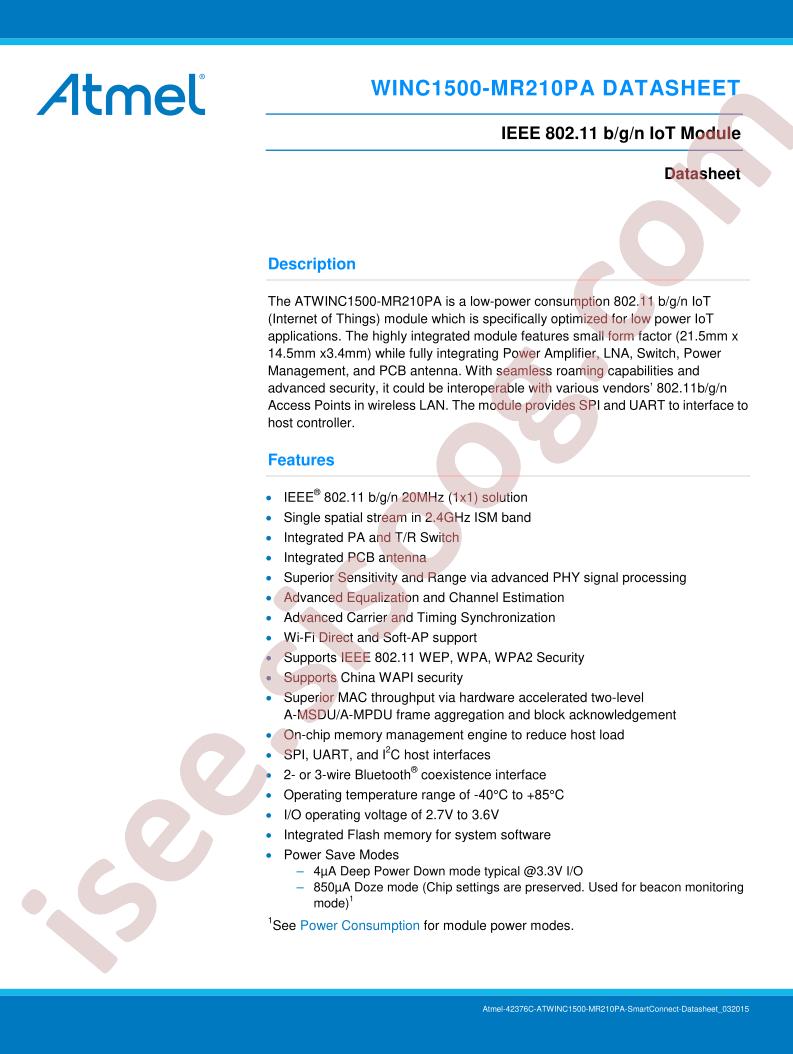

دانلود دیتاشیت ATWINC1500-MR210PA Datasheet |
ATWINC1500-MR210PA Datasheet Datasheet |
|---|
مشخصات
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Tray
- Part Status: Obsolete
- RF Family/Standard: WiFi
- Protocol: 802.11b/g/n
- Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
- Frequency: 2.4GHz
- Data Rate: 72.2Mbps
- Power - Output: 19dBm
- Sensitivity: -98dBm
- Serial Interfaces: I²C, SPI, UART
- Antenna Type: Integrated, Trace
- Utilized IC / Part: -
- Memory Size: 4MB Flash, 128kB ROM, 64kB RAM
- Voltage - Supply: 2.7V ~ 3.6V
- Current - Receiving: 29mA ~ 68mA
- Current - Transmitting: 29mA ~ 230mA
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 28-SMD Module
- Firmware Version: 19.4.4
- Base Part Number: ATWINC1500
- detail: WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
