دیتاشیت LTC2389IUK-18#TRPBF

LTC2389IUK-18#TRPBF

مشخصات دیتاشیت

نام دیتاشیت LTC2389IUK-18#TRPBF
حجم فایل 115.194 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت LTC2389IUK-18#TRPBF

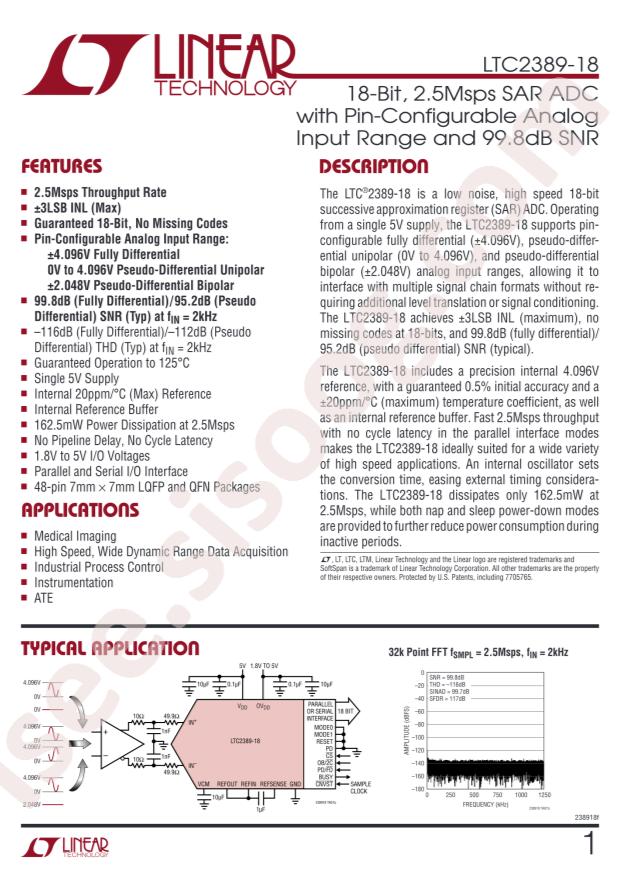

LTC2389IUK-18#TRPBF Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC2389IUK-18#TRPBF
  • Interface: SPI;Parallel
  • resolution: 18Bit
  • Supply Voltage: 5V
  • differential input: Yes
  • number of channels: 1
  • sampling frequency: 2.5MHz
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-48-EP(7x7)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 18
  • Sampling Rate (Per Second): 2.5M
  • Number of Inputs: 1
  • Input Type: Differential, Pseudo-Differential
  • Data Interface: SPI, Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 4.75V ~ 5.25V
  • Voltage - Supply, Digital: 4.75V ~ 5.25V
  • Features: Selectable Address
  • Package / Case: 48-WFQFN Exposed Pad
  • Supplier Device Package: 48-QFN (7x7)
  • Mounting Type: Surface Mount
  • detail: 18 Bit Analog to Digital Converter 1 Input 1 SAR 48-QFN (7x7)
