دیتاشیت LTC2282IUP#TRPBF

LTC2282

مشخصات دیتاشیت

نام دیتاشیت LTC2282
حجم فایل 475.015 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت LTC2282

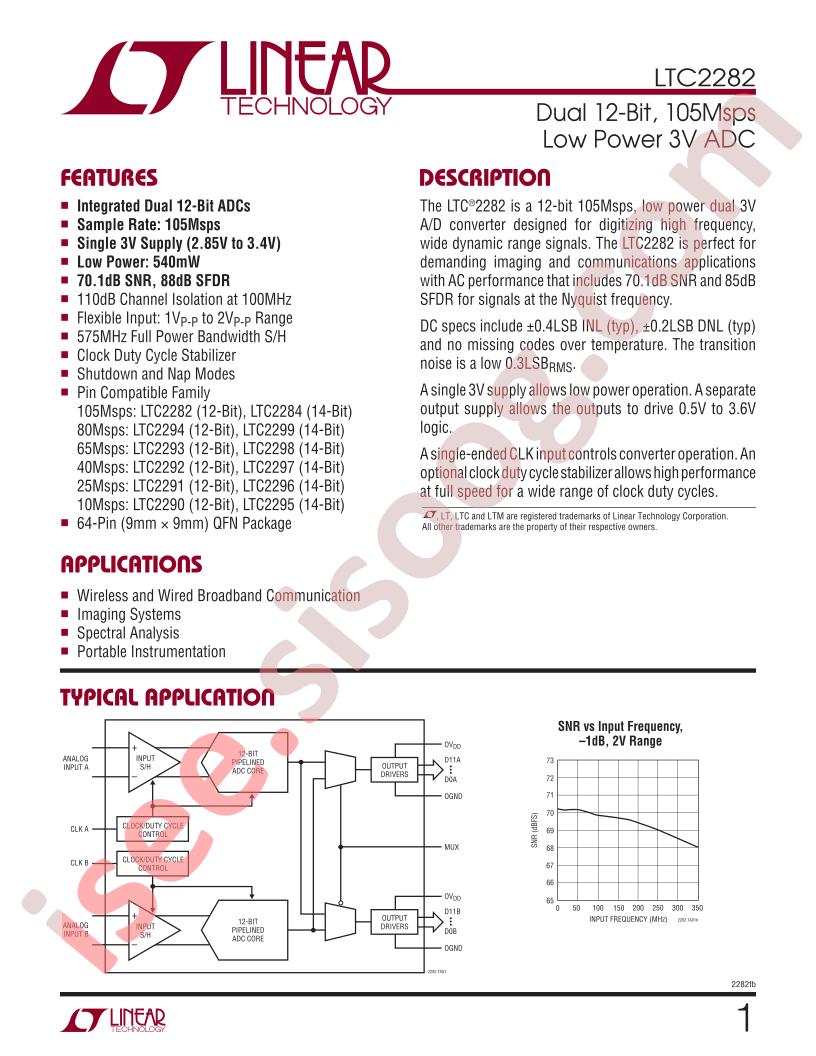

LTC2282 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 105M
  • Number of Inputs: 2
  • Input Type: Differential, Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 2
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.85V ~ 3.4V
  • Voltage - Supply, Digital: 2.85V ~ 3.4V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 64-WFQFN Exposed Pad
  • Supplier Device Package: 64-QFN (9x9)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2282
  • detail: 12 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9)
