C8051F547-IM دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | C8051F547-IM |
|---|---|
| حجم فایل | 95.304 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 276 |
دانلود دیتاشیت C8051F547-IM |
دانلود دیتاشیت |
|---|
سایر مستندات

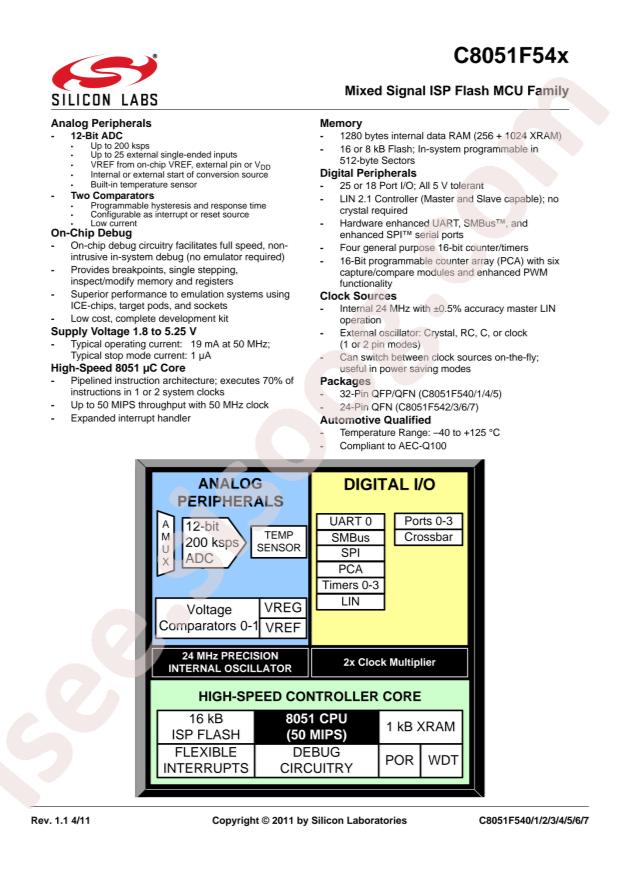

C8051F54x 276 pages
C8051F54x Errata 3 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: 51Series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 1.25KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: SILICON LABS C8051F547-IM
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 50MHz
- GPIO Ports Number: 18
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;On-chip temperature sensor
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 8KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~5.25V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: QFN-24-EP(4x4)
- Manufacturer: SILICON LABS
- Package / Case: 24-WFQFN Exposed Pad
- Operating Temperature: -40°C ~ 125°C (TA)
- Speed: 50MHz
- Core Processor: 8051
- Series: C8051F54x
- Base Part Number: C8051F54
- Data Converters: A/D 18x12b
- Connectivity: SMBus (2-Wire/I²C), SPI, UART/USART
- Mounting Type: Surface Mount
- EEPROM Size: -
- Number of I/O: 18
- Oscillator Type: Internal
- Supplier Device Package: 24-QFN (4x4)
- Program Memory Size: 8KB (8K x 8)
- Part Status: Active
- Core Size: 8-Bit
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.25V
- Peripherals: POR, PWM, Temp Sensor, WDT
- Packaging: Tube
- detail: 8051 C8051F54x Microcontroller IC 8-Bit 50MHz 8KB (8K x 8) FLASH 24-QFN (4x4)
