دیتاشیت LTC2143CUP-14#TRPBF

LTC2143CUP-14#TRPBF

مشخصات دیتاشیت

نام دیتاشیت LTC2143CUP-14#TRPBF
حجم فایل 103.732 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

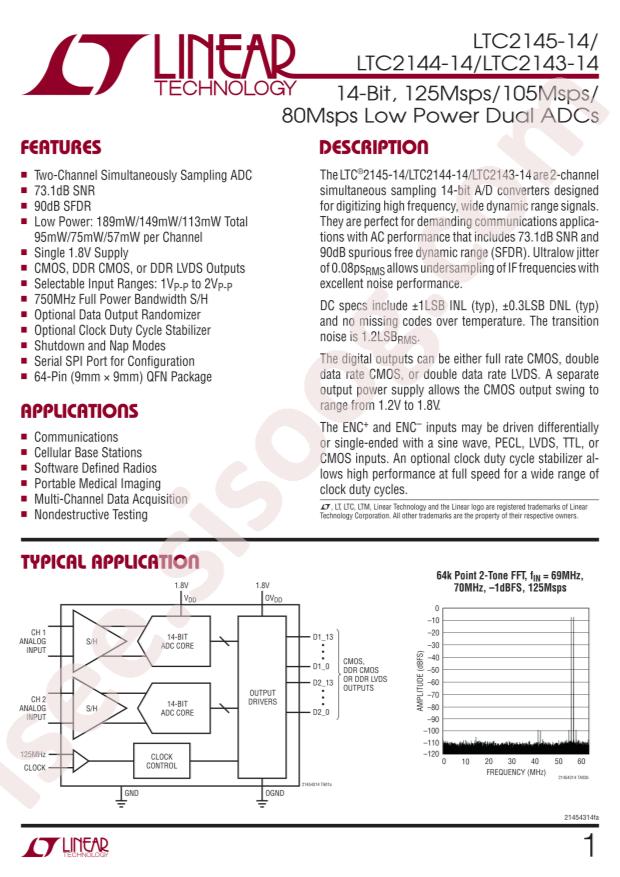

دانلود دیتاشیت LTC2143CUP-14#TRPBF

LTC2143CUP-14#TRPBF Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices LTC2143CUP-14#TRPBF
  • Interface: Parallel
  • resolution: 14Bit
  • Supply Voltage: 1.7V~1.9V
  • differential input: Yes
  • number of channels: 2
  • sampling frequency: 80MHz
  • Operating Temperature: 0°C~+70°C
  • Package: QFN-64-EP(9x9)
  • Manufacturer: Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Number of Bits: 14
  • Sampling Rate (Per Second): 80M
  • Number of Inputs: 2
  • Input Type: Differential
  • Data Interface: Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 2
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 1.7V ~ 1.9V
  • Voltage - Supply, Digital: 1.7V ~ 1.9V
  • Features: Simultaneous Sampling
  • Package / Case: 64-WFQFN Exposed Pad
  • Supplier Device Package: 64-QFN (9x9)
  • Mounting Type: Surface Mount
  • detail: 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9)
