دیتاشیت LTC2170IUKG-14#TRPBF

LTC2172/71/70-14

مشخصات دیتاشیت

نام دیتاشیت LTC2172/71/70-14
حجم فایل 1556.311 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LTC2172/71/70-14

LTC2172/71/70-14 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 14
  • Sampling Rate (Per Second): 25M
  • Number of Inputs: 4
  • Input Type: Differential
  • Data Interface: LVDS - Serial
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 4
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 1.7V ~ 1.9V
  • Voltage - Supply, Digital: 1.7V ~ 1.9V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 85°C

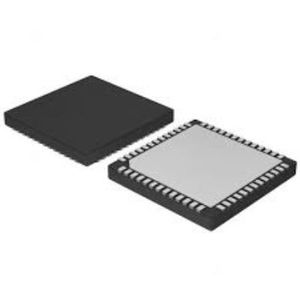

  • Package / Case: 52-WFQFN Exposed Pad
  • Supplier Device Package: 52-QFN (7x8)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2170
  • detail: 14 Bit Analog to Digital Converter 4 Input 4 Pipelined 52-QFN (7x8)
