دیتاشیت LT3093IMSE#TRPBF

LT3093

مشخصات دیتاشیت

نام دیتاشیت LT3093
حجم فایل 4348.271 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت LT3093

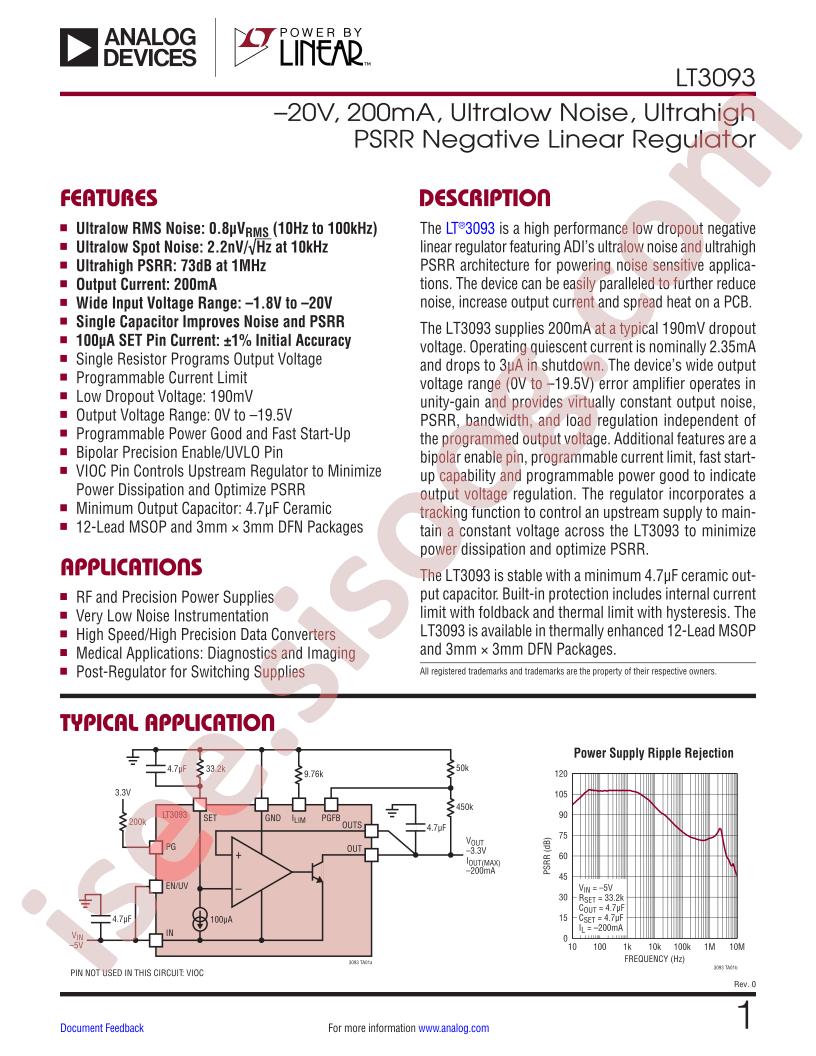

LT3093 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Output Configuration: Negative
  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): -20V
  • Voltage - Output (Min/Fixed): 0V
  • Voltage - Output (Max): 19.5V
  • Voltage Dropout (Max): 0.3V @ 200mA
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 10µA
  • Current - Supply (Max): 80mA
  • PSRR: 73dB (1MHz)
  • Control Features: Current Limit, Enable
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
  • Supplier Device Package: 12-MSOP-EP
  • detail: Linear Voltage Regulator IC 1 Output 200mA 12-MSOP-EP
