دیتاشیت MCP1701A-3002I/TO
مشخصات دیتاشیت
نام دیتاشیت | MCP1701A |
---|---|
حجم فایل | 608.254 کیلوبایت |
نوع فایل | |
تعداد صفحات | 22 |
دانلود دیتاشیت MCP1701A |

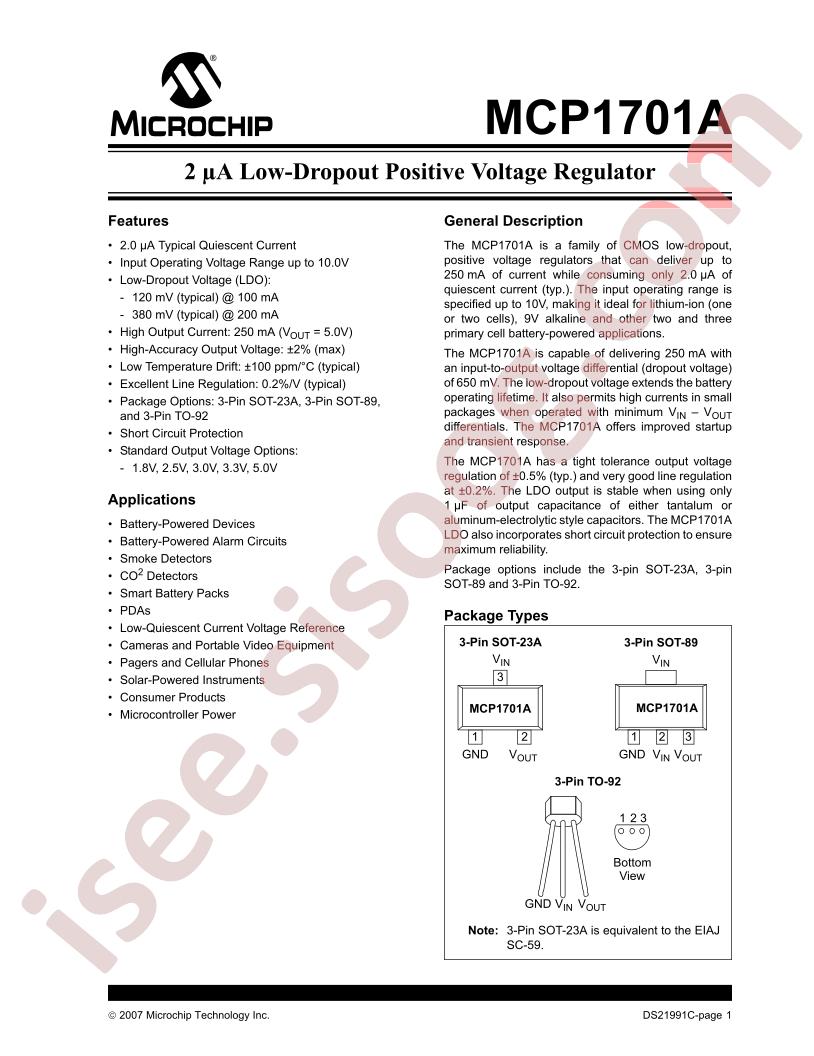

MCP1701A Datasheet |
---|
مشخصات
- Manufacturer: Microchip Technology
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.7V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 4.5µA
- PSRR: -
- Control Features: -
- Protection Features: Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
- Base Part Number: MCP1701A
- detail: Linear Voltage Regulator IC 1 Output 150mA TO-92-3
