دیتاشیت LTC2242IUP-10#TRPBF

LTC2242-10

مشخصات دیتاشیت

نام دیتاشیت LTC2242-10
حجم فایل 602.113 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت LTC2242-10

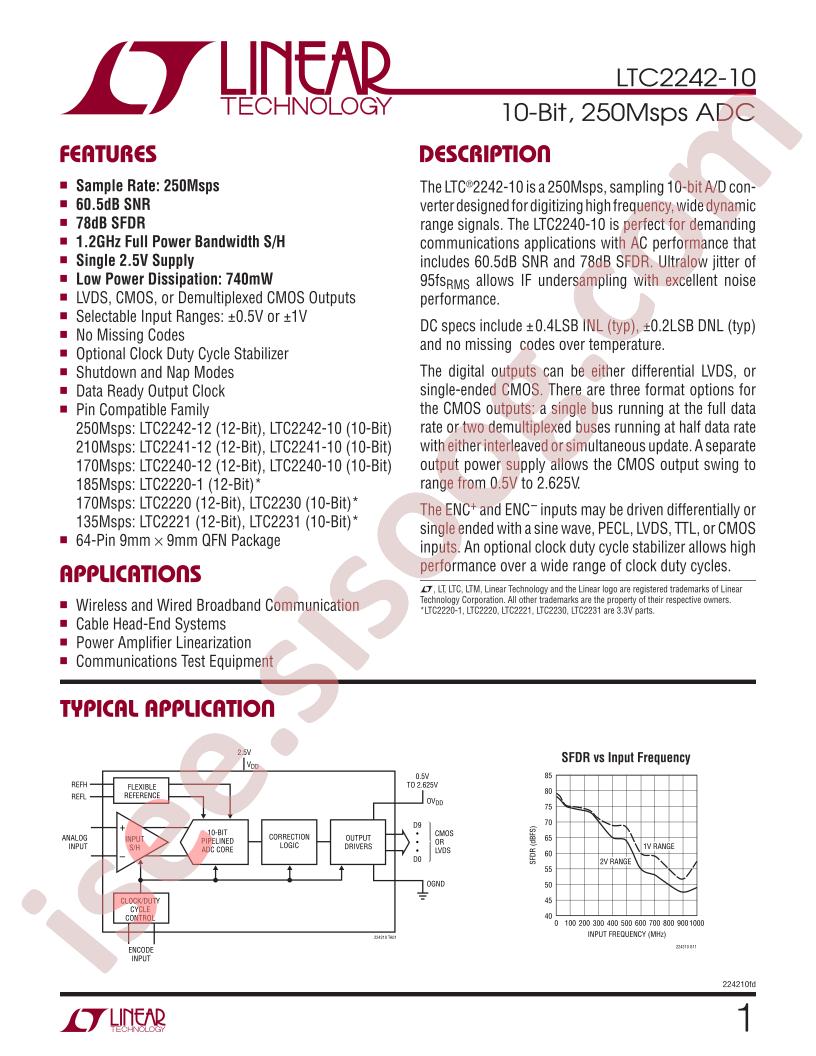

LTC2242-10 Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 10
  • Sampling Rate (Per Second): 250M
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: LVDS - Parallel, Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.375V ~ 2.625V
  • Voltage - Supply, Digital: 2.375V ~ 2.625V
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 64-WFQFN Exposed Pad
  • Supplier Device Package: 64-QFN (9x9)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2242
  • detail: 10 Bit Analog to Digital Converter 1 Input 1 Pipelined 64-QFN (9x9)
