دیتاشیت LTC2242CUP-12#PBF

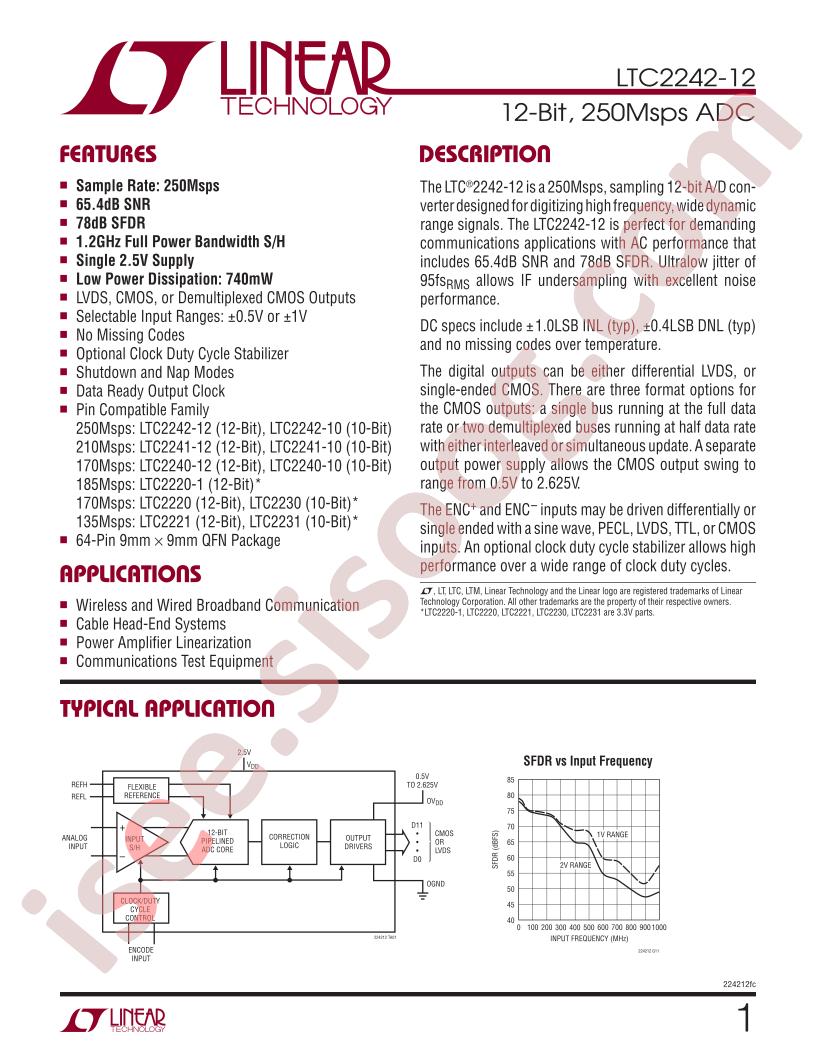

LTC2242-12 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LTC2242-12 Datasheet
حجم فایل 486.21 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت LTC2242-12 Datasheet

LTC2242-12 Datasheet Datasheet

مشخصات

  • Manufacturer: Linear Technology/Analog Devices
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 12
  • Sampling Rate (Per Second): 250M
  • Number of Inputs: 1
  • Input Type: Differential
  • Data Interface: LVDS - Parallel, Parallel
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: Pipelined
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 2.375V ~ 2.625V
  • Voltage - Supply, Digital: 2.375V ~ 2.625V
  • Features: -
  • Operating Temperature: 0°C ~ 70°C
  • Package / Case: 64-WFQFN Exposed Pad
  • Supplier Device Package: 64-QFN (9x9)
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2242
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 64-QFN (9x9)
