دیتاشیت LTC2704IGW-14#TRPBF

LTC2704

مشخصات دیتاشیت

نام دیتاشیت LTC2704
حجم فایل 351.211 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

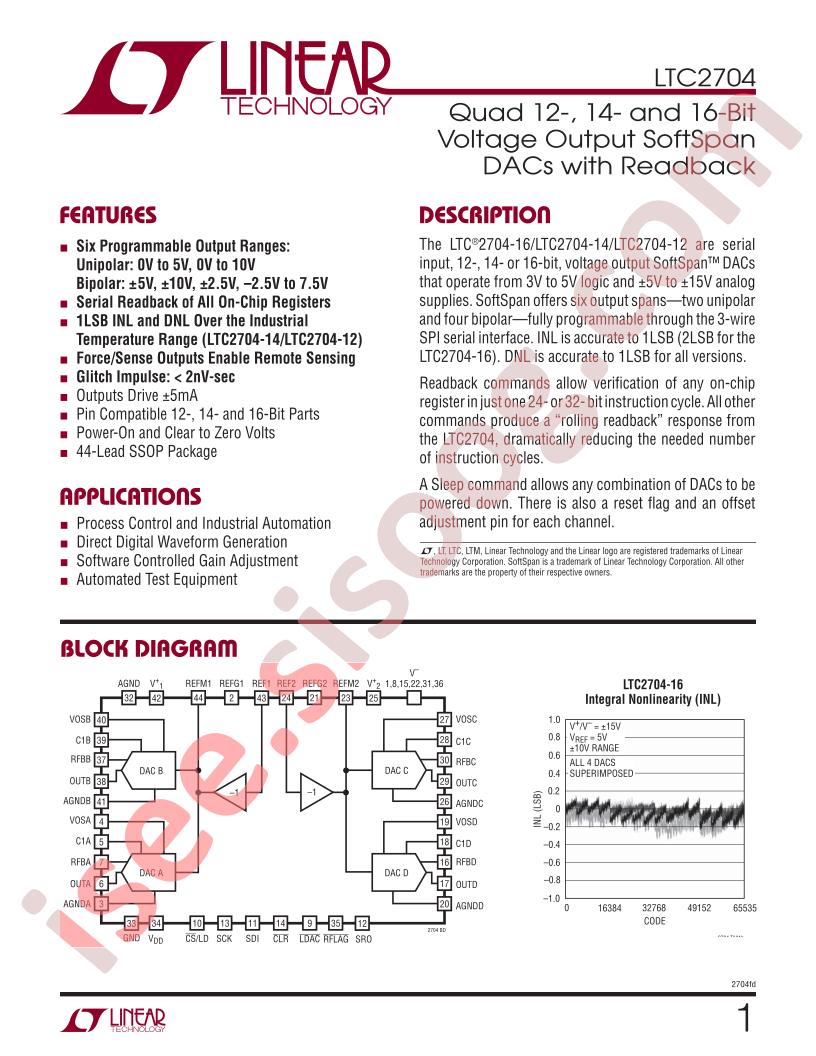

دانلود دیتاشیت LTC2704

LTC2704 Datasheet

مشخصات

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Analog Devices LTC2704IGW-14#TRPBF
  • Operating Temperature: -40°C~+85°C
  • Package: SSOP-44-300mil
  • Manufacturer: Analog Devices
  • Series: SoftSpan™
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Number of Bits: 14
  • Number of D/A Converters: 4
  • Settling Time: 9µs (Typ)
  • Output Type: Voltage - Buffered
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: External
  • Voltage - Supply, Analog: ±4.5V ~ 16.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±1 (Max), ±1 (Max)
  • Architecture: -
  • Package / Case: 44-BSOP (0.295", 7.50mm Width)
  • Supplier Device Package: 44-SSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LTC2704
  • detail: 14 Bit Digital to Analog Converter 4 44-SSOP
