دیتاشیت C8051F536-C-IMR
مشخصات دیتاشیت
| نام دیتاشیت |
C8051F52x/F53x
|
| حجم فایل |
2885.352
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
220
|
مشخصات
-
CAN:
-
-
I2C:
-
-
I2S:
-
-
SPI:
-
-
RoHS:
true
-
EEPROM:
-
-
CPU Core:
51Series
-
Category:
Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
-
RAM Size:
256Byte
-
Watchdog:
Yes
-
ADC (Bit):
12bit
-
DAC (Bit):
-
-
Datasheet:
SILICON LABS C8051F536-C-IMR
-
PWM (Bit):
-
-
8Bit Timer:
-
-
UART/USART:
-
-
16Bit Timer:
-
-
32Bit Timer:
-
-
Real-Time Clock:
-
-
CPU Maximum Speed:
25MHz
-
GPIO Ports Number:
16
-
Low-Voltage Detect:
Yes
-
CCP Capture/Compare:
-
-
Internal Comparator:
-
-
Internal Oscillator:
Yes
-
Peripheral/Function:
On-chip temperature sensor;WDT;LIN(Local Interconnect Network)
-
Program Memory Type:
FLASH
-
Direct Memory Access:
-
-
Program Storage Size:
2KB
-
Universal Serial Bus:
-
-
communication protocol:
-
-
Operating Voltage Range:
2V~5.25V
-
Infrared Data Association:
-
-
Operating Temperature Range:
-40°C~+125°C
-
Secure Digital Input and Output:
-
-

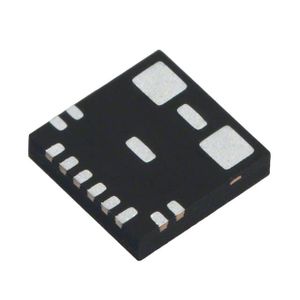

Package:
QFN-20-EP(4x4)
-
Manufacturer:
SILICON LABS
-
Number of I/O:
16
-
EEPROM Size:
-
-
Speed:
25MHz
-
Supplier Device Package:
20-QFN (4x4)
-
Package / Case:
20-VFQFN Exposed Pad
-
Core Processor:
8051
-
Series:
C8051F53x
-
Voltage - Supply (Vcc/Vdd):
2V ~ 5.25V
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Oscillator Type:
Internal
-
Program Memory Size:
2KB (2K x 8)
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Data Converters:
A/D 16x12b
-
Packaging:
Tray
-
Connectivity:
LINbus, SPI, UART/USART
-
Peripherals:
Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
-
Core Size:
8-Bit
-
detail:
8051 C8051F53x Microcontroller IC 8-Bit 25MHz 2KB (2K x 8) FLASH 20-QFN (4x4)
