دیتاشیت SI8045AA-B-IUR
مشخصات دیتاشیت
| نام دیتاشیت |

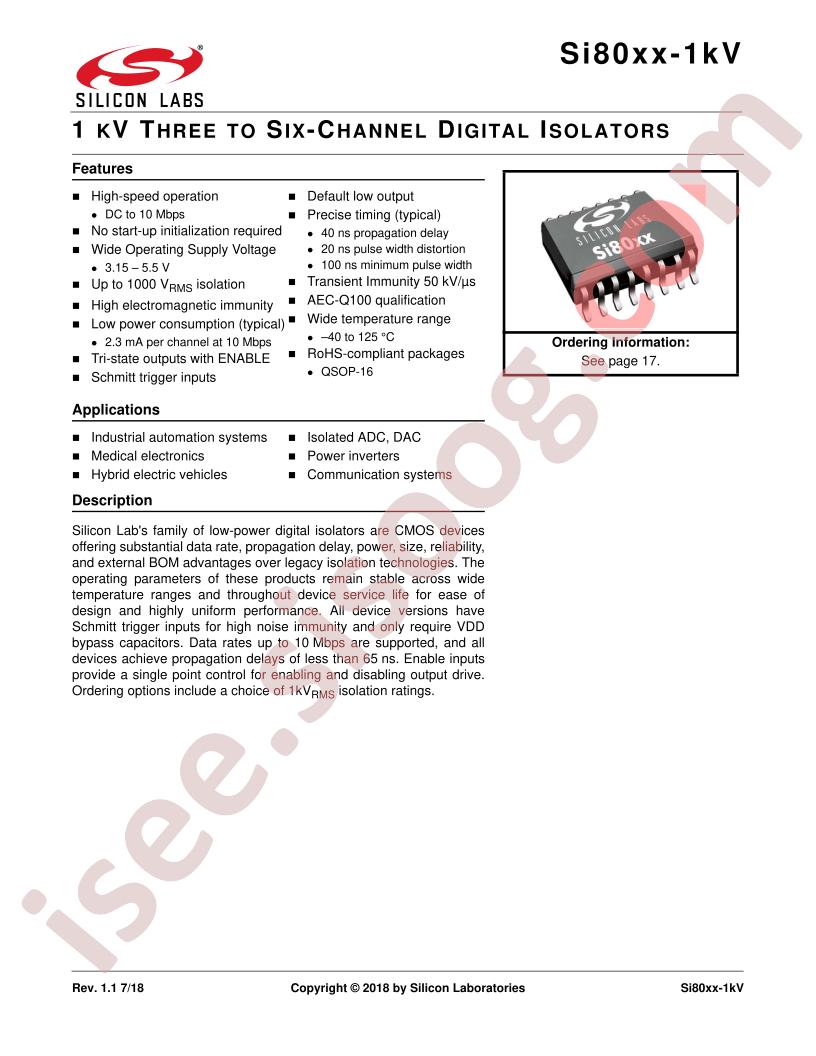

Si80xx
|
| حجم فایل |
575.846
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
Manufacturer:
Silicon Labs
-
Package / Case:
16-SSOP (0.154", 3.90mm Width)
-
Rise / Fall Time (Typ):
2.5ns, 2.5ns
-
Number of Channels:
4
-
Operating Temperature:
-40°C ~ 125°C
-
Pulse Width Distortion (Max):
30ns
-
Data Rate:
10Mbps
-
Technology:
Capacitive Coupling
-
Supplier Device Package:
16-QSOP
-
Series:
-
-
Voltage - Supply:
3.15V ~ 5.5V
-
Isolated Power:
No
-
Inputs - Side 1/Side 2:
4/0
-
Common Mode Transient Immunity (Min):
35kV/µs
-
Channel Type:
Unidirectional
-
Type:
General Purpose
-
Propagation Delay tpLH / tpHL (Max):
65ns, 65ns
-
Part Status:
Active
-
Voltage - Isolation:
1000Vrms
-
Mounting Type:
Surface Mount
-
Packaging:
Tape & Reel (TR)
-
detail:
General Purpose Digital Isolator 1000Vrms 4 Channel 10Mbps 35kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
