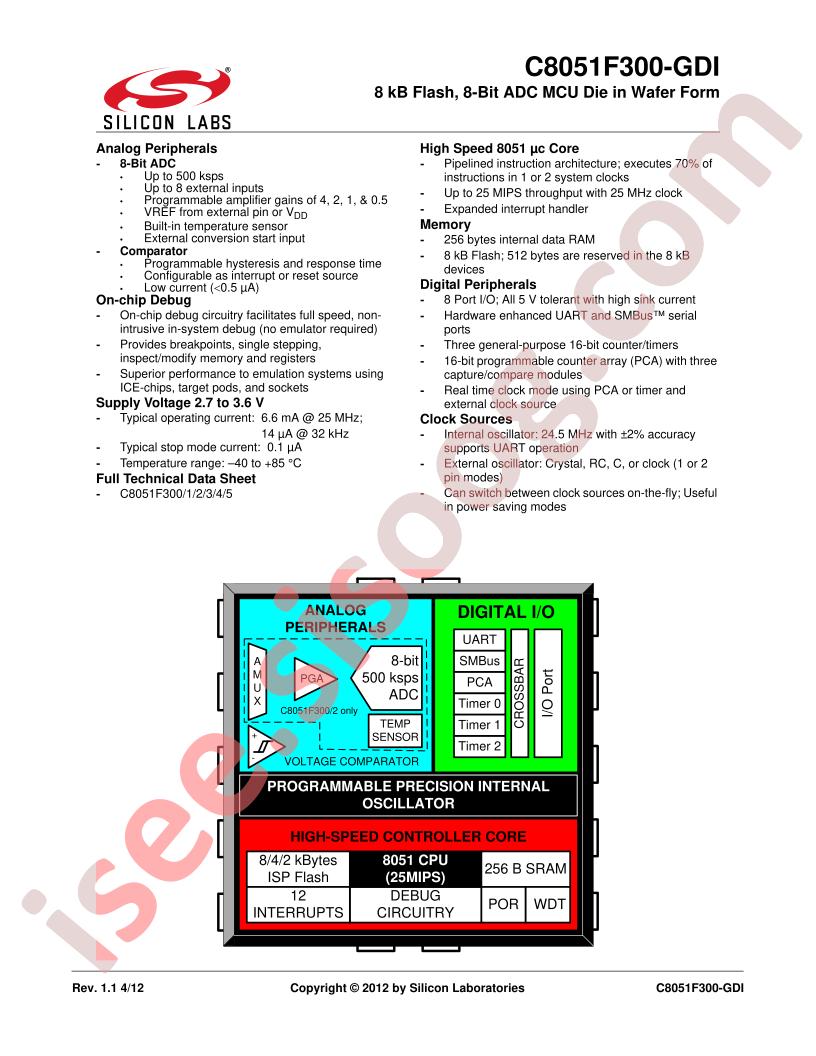

دیتاشیت C8051F300-GDI
مشخصات دیتاشیت
| نام دیتاشیت |
C8051F300-GDI
|
| حجم فایل |
198.554
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
CPU Core:
51Series
-
Category:
Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
-
Watchdog:
Yes
-
ADC (Bit):
8bit
-
Datasheet:
SILICON LABS C8051F300-GDI
-
CPU Maximum Speed:
25MHz
-
GPIO Ports Number:
8
-
Low-Voltage Detect:
Yes
-
Internal Oscillator:
Yes
-
Program Storage Size:
8KB
-
Operating Voltage Range:
2.7V~3.6V
-
Operating Temperature Range:
-40°C~+85°C
-
Package:
-
-
Manufacturer:
SILICON LABS
-
Number of I/O:
8
-
Program Memory Type:
FLASH
-
EEPROM Size:
-
-
RAM Size:
256 x 8
-
Base Part Number:
C8051F30
-
Speed:
25MHz
-
Package / Case:
Die
-
Core Processor:
8051
-
Series:
C8051F30x
-
Voltage - Supply (Vcc/Vdd):
2.7V ~ 3.6V
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Oscillator Type:
Internal
-
Program Memory Size:
8KB (8K x 8)
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Data Converters:
A/D 8x8b
-
Packaging:
Bulk
-
Connectivity:
SMBus (2-Wire/I²C), UART/USART
-
Peripherals:
POR, PWM, Temp Sensor, WDT
-
Core Size:
8-Bit
-
detail:
8051 C8051F30x Microcontroller IC 8-Bit 25MHz 8KB (8K x 8) FLASH
